Comeup 12,000 lbs. 12V Electric Winch with Wire Rope

(No reviews) Write a Review
$1,225.00
SKU: DV-12
Weight: 147.70 LBS
Adding to cart… The item has been added
Description
Want to find a reliable Winch? This Comeup Winch performs and answers the slogan. "Work Tough,Play Tough"
  • Comeup USA is a Trusted brand which has been exclusively manufacturing winches for over 37 years
  • Comes with an all sealed high performance motor that supplies superior torque and faster line speed
  • The 3 stage planetary gearbox delivers the most reliable and durable performances of a winch under rugged conditions
  • Includes Comeup's patented automatic CBS (cone brake structure) that holds firmly a full load and at the same time allows for easy maintenance.
  • Proprietary cone brake design outside of the drum is ideal for heat sensitive synthetic rope. This also allows for rapid heat dispersion.
  • Comes with a heavy duty sealed contactor which ensures sound waterproof protection
  • Includes a LED protective thermal sensor to warn you if you are overheating the motor

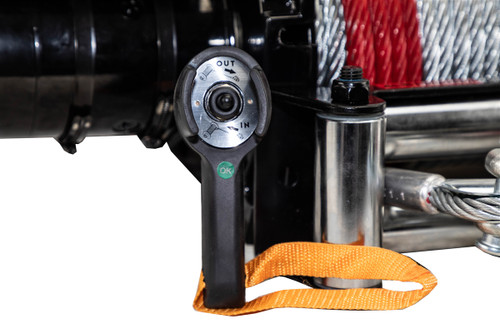

  • The Comeup T-handle clutch allows for rapid rope payout. The entire clutch can be rotated to reposition T-handle in multiple locations (see drawing below)

Specs/Part Numbers
  • Rated Single Line Pull : 12,000 lbs (5,443 kg)
  • Hand Held Remote : 17' (5m) cord
  • Rope Size : 3/8" x 125ft (9.5 mm x 38M)
  • Rope Type : Galvanized aircraft grade A7x19
  • Mounting Bolt Pattern : 10" x 4.5" and 10" x 6.5"
  • Drum Size : 3.5" x 8.1"
  • Winch Construction : Aluminum Dia-Cast Housing w/Steel Drum
  • Motor : 5.6 HP 4,180 w/ 12V Series Wound
  • Gear Ratio: 261:1, 3-stage planetary
  • Model : DV-12
  • Comeup Part number : 857133
  • Winch Weight : 121 lbs (55 kg)
  • Gross Boxed Weight : 147.7 lbs (67 kg)
  • Box Dimension : 26.8" x 8.2" x 17.8"
  • Warranty: Limited Lifetime for Mechanical Components w/ 1 Year Electrical Component Warranty
  • ComeUp Product Registration Link
Box Includes:
  • Main Comeup 12,000 lb. Winch
  • Roller Fairlead
  • Detachable control box
  • Remote Control w/ 17' cord
  • Wire rope w/ safety hook
  • Handsaver strap
  • 6 ft. 2 gauge battery lead
  • Mounting hardware
  • Installation manual
