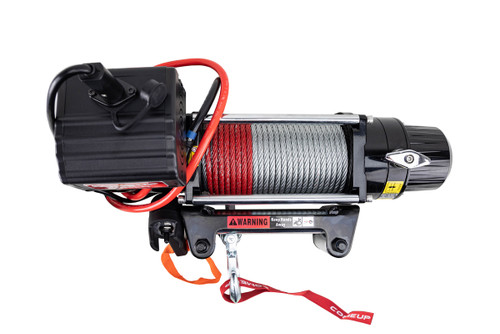

Comeup 9,000 lbs. 12V Electric Winch with Wire Rope

(No reviews) Write a Review
$950.00
SKU: DV-9
Weight: 94.80 LBS
Adding to cart… The item has been added
Description
Want to find a reliable Winch? This Comeup Winch performs and answers the slogan."Work Tough,Play Tough"
  • Comeup USA is a Trusted brand which has been exclusively manufacturing winches for over 37 years
  • Comes with a all sealed high performance motor that supplies superior torque and faster line speed
  • The 3 stage planetary gearbox delivers the most reliable and durable performances of a winch under rugged conditions
  • Includes Comeup's patented automatic CBS (cone brake structure) that holds firmly a full load and at the same time allows for easy maintenance.
  • Proprietary cone brake design outside of the drum is ideal for heat sensitive synthetic rope
  • Comes with a heavy duty sealed contactor which ensures sound waterproof protection
  • Includes a LED protective thermal sensor to warn you if you are overheating the motor

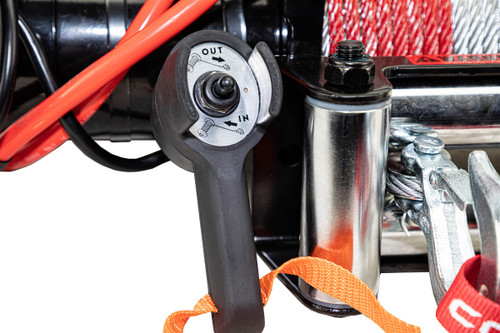

  • The Comeup T-handle clutch allows for rapid rope payout. The entire clutch can be rotated to reposition T-handle in multiple locations (see drawling below)

Specs/Part Numbers
  • Rated Single Line Pull : 9,000 lbs (4,082 kg)
  • Hand Held Remote : 17' (5m) cord
  • Rope Size : 21/64" x 100ft (8.3 mm x 30.5M)
  • Rope Type : Galvanized aircraft grade A7x19
  • Mounting Bolt Pattern : 10" x 4.5"
  • Drum Size : 2.5" x 9"
  • Winch Construction : Aluminum Dia-Cast Housing w/Steel Drum
  • Motor : 4.6 HP 3,430 w/ 12V Series Wound
  • Gear Ratio: 156:1 3-stage pletary
  • Model : DV-9
  • Comeup Part number : 856333
  • Winch Weight : 72.8 lbs (33.0 kg)
  • Gross Boxed Weight : 94.8 lbs (43 kg)
  • Box Dimension 25.6"x 7.7" x 16.3"
  • Warranty: Limited Lifetime for Mechanical Components w/ 1 Year Electrical Component Warranty
  • ComeUp Product Registration Link

Box Includes:
  • Main Comeup 9,000 lb. Winch
  • Roller Fairlead
  • Detachable control box
  • Remote Control w/ 17' cord
  • Wire rope w/ safety hook
  • Handsaver strap
  • 6 ft. 2 gauge battery lead
  • Mounting Hardware
  • Installation manual
