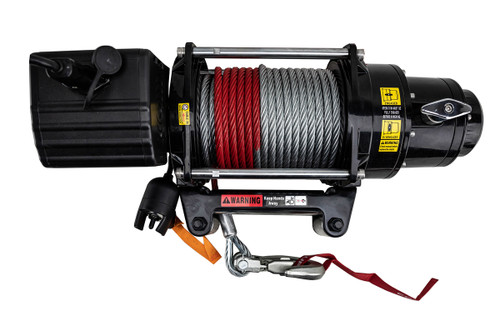

Gen2 20,000 lbs. 12V Electric Winch with Wire Rope

(No reviews) Write a Review
$2,199.99
SKU: GEN2-20.0
Weight: 169.70 LBS
Adding to cart… The item has been added
Description
Want to find a reliable Winch? This Comeup Winch performs and answers the slogan."Work Tough,Play Tough"
  • Comeup USA is a Trusted brand which has been exclusively manufacturing winches for over 37 years
  • Comes with a all sealed high performance motor that supplies superior torque and faster line speed
  • The hardened steel 3 stage planetary gearbox delivers the most reliable and durable performances of a winch under rugged conditions
  • Includes Comeup's patented automatic CBS (cone brake structure) that holds firmly a full load and at the same time allows for easy maintenance.
  • Proprietary cone brake design outside of the drum is ideal for heat sensitive synthetic rope, This also allows for rapid heat dispersion.
  • Comes with a heavy duty sealed contactor which ensures sound waterproof protection
  • Includes a LED protective thermal sensor to warn you if you are overheating the motor
  • The Comeup T-handle clutch allows for rapid rope payout. The entire clutch can be rotated to reposition T-handle in multiple locations (see drawling below)
  • Meets international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2004/108/EC, and SAE J706 Surface Vehicle standard 2003-08

Specs/Part Numbers
  • Rated Single Line Pull : 20,000 lbs (9,072 kg)
  • Hand Held Remote : 17' (5m) cord
  • Rope Size : 1/2" x 59ft (12.7 mm x 18M)
  • Rope Type : Galvanized 6x29 -IWRC
  • Mounting Bolt Pattern : 10" x 4.5" and 10" x 6.5"
  • Drum Size : 3.5" x 8"
  • Winch Construction : Aluminum Dia-Cast Housing w/Steel Drum
  • Motor : 7.0 HP 5,220 w/ 12V Series Wound
  • Gear Ratio: 343:1 3-stage planetary
  • Comeup : Gen 2 Sealed Waterproof series
  • Model :Seal Gen2 20.0
  • Comeup Part number : 295230
  • Winch Weight : 132 lbs
  • Boxed Weight : 169.7 lbs
  • Box Dimension 29.1"x10.6"x19.5"
  • Warranty: Limited Lifetime for Mechanical Components w/ 3 Year Electrical Component Warranty
  • ComeUp Product Registration Link

Box Includes:
  • Main Comeup Gen2 20,000 lb. Winch
  • Roller Fairlead
  • Detachable Submersible control box
  • Remote Control w/ 17' cord
  • Wire rope w/ safety hook
  • Handsaver strap
  • 6 ft. 2 gauge battery lead
  • Mounting hardware
  • Installation manual
