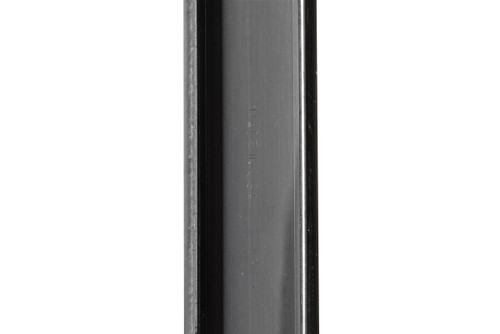

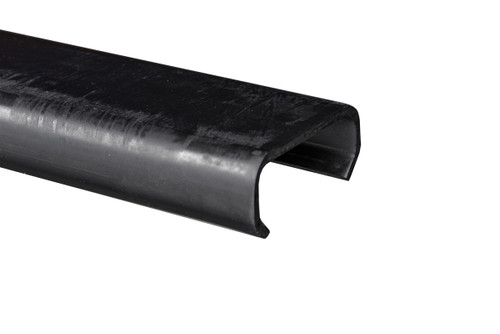

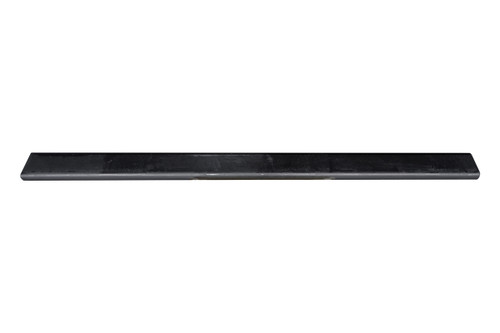

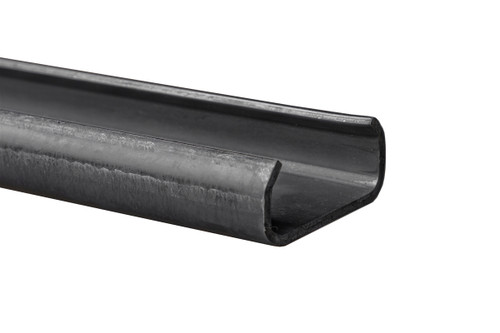

Steel C-Channel Slide Track - 6 FT - Raw

• Most common and popular C channel Design in the transportation industry for sliding winches
• Allows you to position your sliding winch where ever you need
• Designed to firmly lock in place when tension is applied for a reliable and smooth tie-down
• Made in the USA

• Construction: Carbon Steel
• Finish: Raw
• Overall Length: 72"(6 Ft)
• Overall Width: 4-3/4"
• Overall Height: 2"
• Thickness: 1/4"
• Manufacturer: Kinedyne
• Part number: 3606
• Warranty: Limited Lifetime Warranty

To install, position the Winch Track to the underside of the side rail, which will extend past side rail 1/4 inches to 3/8 inches. Then weld it to the vehicle's side rail with 1/4" fillet welds 2" long every 6" with 1/8" minimum penetration. Finally, weld the winch track to the angle iron, C-channel crossmembers, or shims. It's that simple.
