700 Series Cushion Rebuild Kit # P-700RE

Schuck 700 Series Cushion Rebuild Kit # P-700RE
- Fits all Schuck's 700 Series hitches

• Part number# 750 RT-R 2.5, Model 710, Model 720, Model 740 -2.5, Model 740, Model 750, Model 750 RT, Model 750 RT-2.5, Model 750 RT-R

- Fits all tongue sizes that are .75" thick by 2.5" wide and 15.25" long
- Recommended to be replaced every 8-10 years depending on use.
- Remove two bolts at the back of the hitch to gain access to the bushings and draw bar
- Made in the USA

Kits includes

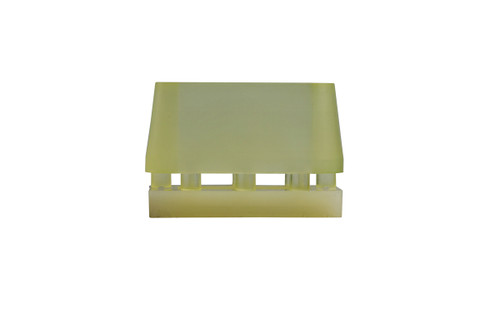

• (5) Polyethane bearings

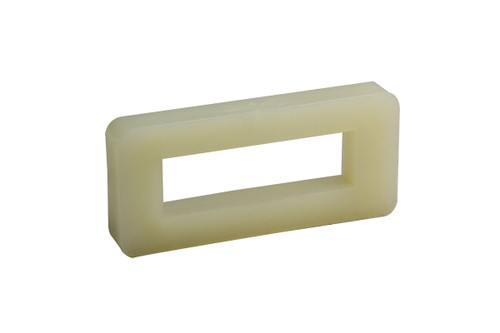

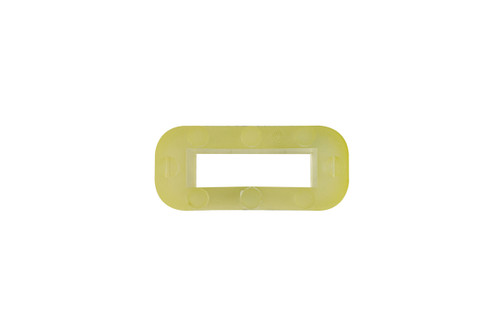

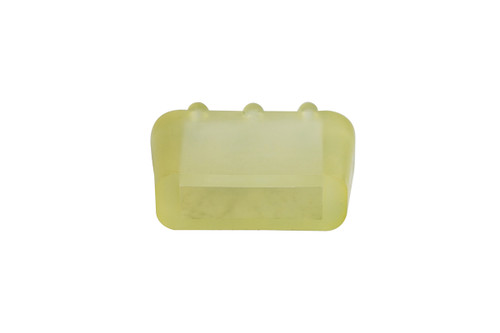

• (4) Urethane Cushions
• (1) Paper instruction

Main Specs:
Series Size: 700
Part number: P-700RE or 700 KIT
Manufacturer: Schuck Cushion Hitches
Warranty: 1 year on parts and workmanship.

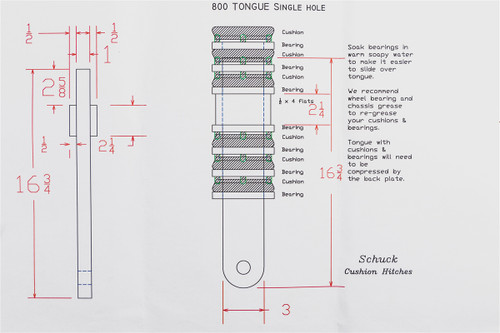

How it Works



Installed Example
