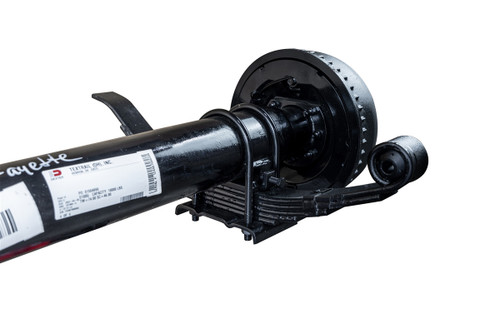

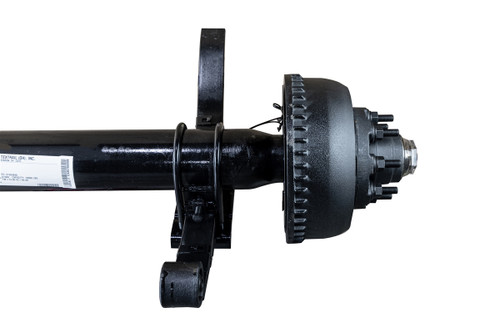

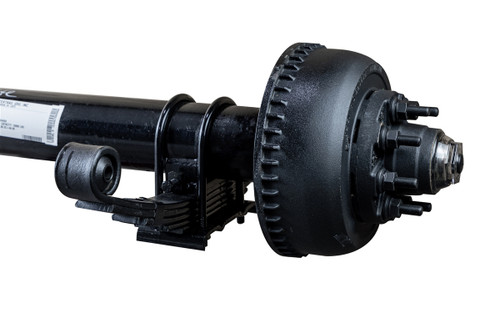

Complete Dexter 10,000 lb General Duty Electric braking axle assembly.
Includes the brakes, drums, bearings, flanged lugnuts, U-bolts, and Springs – all pre-mounted.
This is a straight axle with springs seats underneath the axle.
Includes adjustable spring seat for axle alignment.
• Weight rating: 10,000 lb. capacity
• Axle Manufacturer: Dexter Axle

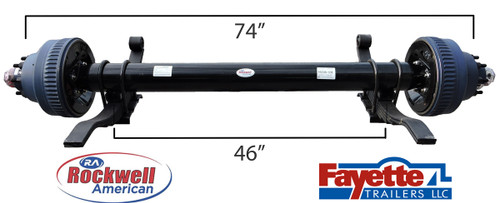

• Hub Face to Hub face: 74"
• Spring Center to Spring Center: 46"
• Bolt Pattern: 8 lug on 6.5"
• Wheel Stud Size: 5/8"
• Drum Pilot Size: 4.75"
• Slipper Spring Size: 5 leaf 30" long 5,000 lb capacity
• Spring eye size: 3/4"
• Brake Type: Electric Brakes 12-1/4" by 3-3/8"
• Lubrication: Oil Bath
• Fits PJ Tandem Dual trailers (standard after 2015)

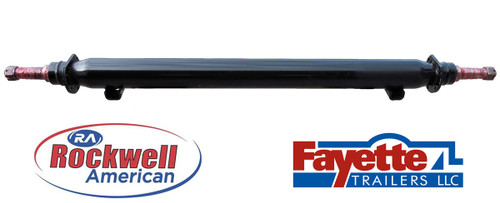

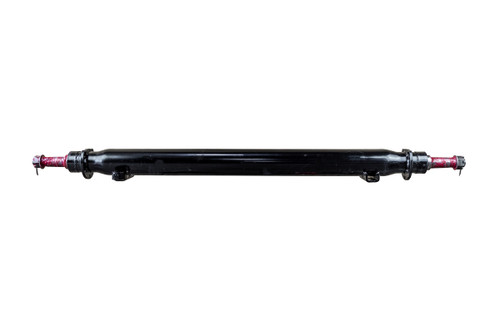

Cambered Axle Tube:
• 5" outside diameter 0.250 wall tubing
Spindle Size:
• General Duty
Hub:
• # 8-430-5 Drum / Hub with 5/8" wheel studs
Inside components:
Brakes:
• 23-450 LH 12-1/4" x 3-3/8" Forward adjusting electric brake
• 23-451 RH 12-1/4" x 3-3/8" Forward adjusting electric brake
Bearings:
• Inner: 387A
• Outer: 25580
Races:
• Inner: 382A
• Outer: 25520
Oil seal:
• Part # 10-51 2.875" ID x 3.880" OD
