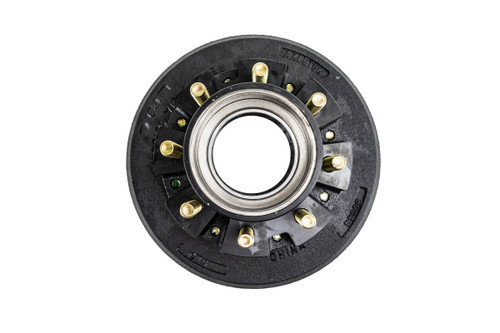

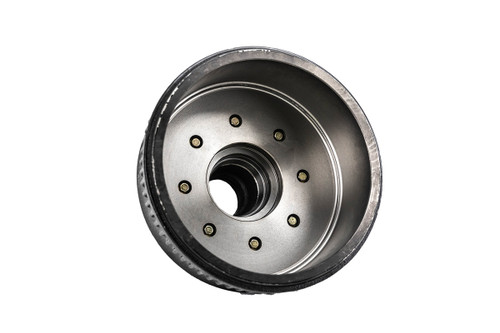

Axle Tek. Trailer Axle Hub/ Drum only for older 10,000 lb. Dexter or Lippert General Duty axles.
- Drum works with both electric drum brakes, and hydraulic drum brakes with/out ABS
- Heavy duty cast iron construction w/ outer paint finish
- Comes complete with races prepressed in
- Works on Dexter 10,000 lb. General Duty axles built before July 2009
- Works on Lippert 10,000 lb. General Duty axles built before August 2020
Bearing and Races Specs:
- Inner Bearing : 387A -(not included)
- Outer Bearing : 25580 -(not included)
- Inner Race : 382A -included
- Outer Race : 25520 -included
- Oil Seal : 10-51 or 10-051-00 (not included)
Main Specs:
- Drum Dimensions: 12-1/4" diameter x 3-3/8" Wide
- Hub Pilot: 4.75"
- Bolt Pattern: 8 on 6-1/2"
- Stud Size: 5/8"
- Capacity: 5,000 lbs.
- Manufacturer: Axle Teknology
- Part number: BD-86510-16
- Dexter Crossover Part Numbers: K08-288-90, DX Hub 008-288-3UC1, DX Drum 009-044-01
- Lippert Crossover Part Numbers: 183662, Hub 183168, Drum 183537
Axle Teknology Quality Explained:
These Hub and Drum have met and exceeded the requirements of the Canadian Standards Association (CSA). CSA certification creates a standard to ensure a safe and high quality product. This drum has also been tested by a third party company (QAI) for braking performance in a complete automotive/trailer setup and under real-world conditions. This drum assembly has passed and held up under testing for your peace of mind and to help you move with confidence.
