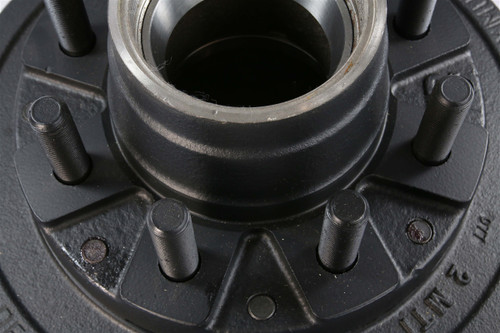

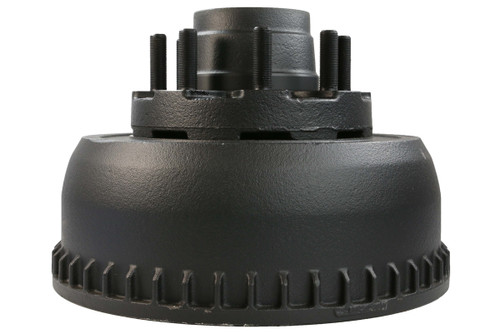

10,000 lb. General Duty Brake Hub & Drum

Official Dexter trailer axle hub / drum for 10,000 lb Dexter general duty (GD) axles.

• Comes with studs, races, installed in the hub.
• Drum Dimensions: 12-1/4" diameter x 3-3/8" wide
• Hub Pilot: 4.75"
• Bolt Pattern: 8 on 6-1/2"
• Stud size: 5/8"
• Capacity: 5,000 lbs
• Works with both electric and hydraulic drum brakes
• Standard drum for PJ Trailers with 10,000 lb general duty Dexter Axles

This drum replaces the 1 piece and 2 piece hub and drums manufactured after August 2009. On Dexter 10K GD axles built before August 2009, use the 008-288-03 hub and the 009-440-01 drum.

To buy this drum/hub complete with bearings, oil seal, oil cap, etc., click here:

10,000 lb General Duty Dexter Brake Drum Kit
