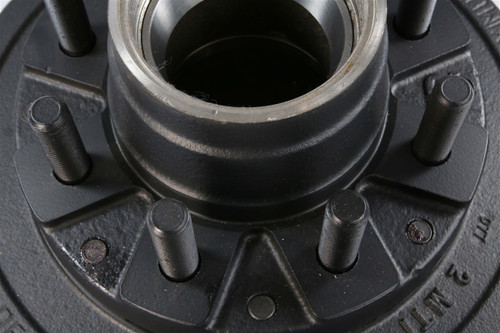

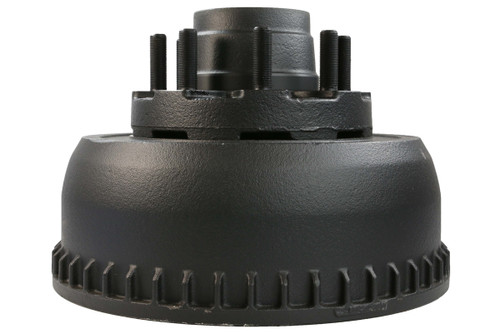

10,000 lb. General Duty Complete Brake Drum Kit

Comes with studs, races, installed in the hub.

• Drum Dimensions: 12-1/4" diameter x 3-3/8" wide
• Hub Pilot: 4.75"
• Bolt Pattern: 8 on 6-1/2"
• Stud size: 5/8"
• Capacity: 5,000 lbs
• Works with both electric drum brakes and hydraulic drum brakes
• Standard drum for PJ Trailers with 9,000 lb & 10,000 lb general duty Dexter Axles
• This drum replaces the 1 piece and 2 piece hub and drums manufactured after August 2009, on Dexter 10K GD axles built before August 2009, using the 008-288-03 hub and the 9-44-1 drum

To buy this drum / hub alone, without the kit components, click here: 10,000 lb General Duty Dexter Brake Drum Only

Bearings:

• Inner Bearing: 387A (2.250" inside diameter)
• Outer Bearing: 25580 (1.750" inside diameter)

Races: (installed in the drum)

• Inner Race: 382A
• Outer Race: 25520

Unitized Oil Seal:

10-51 (2.875" inside diameter and 3.880" outside diameter)

Oil Cap Kit:

RG04-300 (oil cap kit includes plastic oil cap, o-ring, and rubber center plug)
