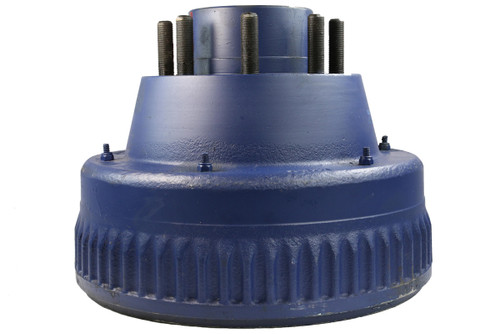

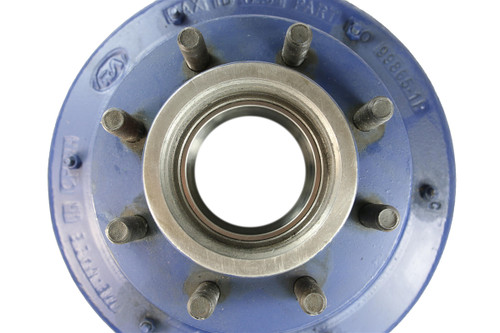

10,000 lb. Quality / Rockwell Electric Brake Drum Kit

Trailer hub / drum for 10,000 lb Quality and Rockwell American axles with 5/8" wheel studs.

• Comes with studs and races pressed into the hub.
• Fits Quality/Rockwell axles.
• Drum Dimensions: 12.25" diameter x 3.50" wide.
• Fits #99 spindle.
• Hub Pilot: 4.88"
• Bolt Pattern: 8 on 6-1/2"
• Stud size: 5/8"
• Capacity: 5,000 lbs.
• This is PJ Trailers standard drum for general duty (GD) 10,000 lb Quality / Rockwell axles.
• This drum comes complete with Bearings, grease seal, grease cap, and lug nuts.
• If you prefer just this drum without the kit components, click here: 10,000 lb Rockwell / Quality Brake Drum Only

Bearings:

• 25580 Outer Bearing
• 28580 Inner Bearing

Oil Seal:

• 91030

Oil Cap:

• 12011-1 (comes with rubber o-ring and rubber center plug)

Lug Nuts:

• 111535 (5/8" swivel flange lug nuts)
