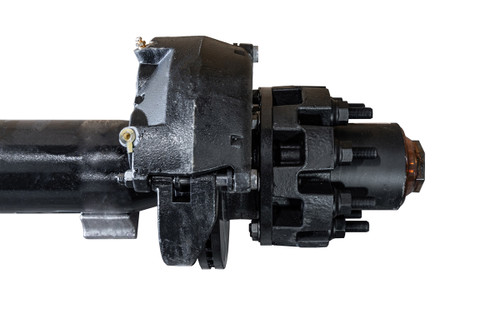

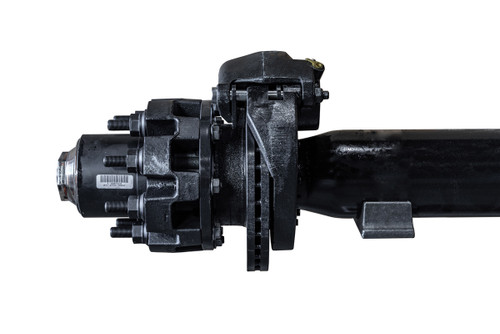

Complete Dexter 12,000 lb. Heavy Duty Hydraulic Disc braking trailer axle assembly.
- Includes the calipers, rotors, hubs, bearings, flanged lug nuts
- *DOES NOT INCLUDE U BOLTS OR SPRINGS*
- This is a straight axle with springs seats underneath the axle.
- Includes standard 3" wide spring seat for 3" wide slipper springs (not for Hutch or HDSS suspensions)
- Fits PJ Tandem Dual Trailers (standard after 2015 to April 2022)
Axle Tube:
- 5" outside diameter 0.440" wall tubing
Spindle Size:
- Heavy duty spindle
Hub / Rotor:
- # 8-214-10 (2 piece) high profile hub with 5/8" studs.
- # 70-006-01 Brake Rotor (http://www.fayettedistribution.com/Dexter-10-12K-Hydraulic-Disc-Rotor-p/70-006.htm)
- #89-002-2 10k / 12k Brake Caliper
Inside components:
Bearings:
- Inner: 3 984 (http://www.fayettedistribution.com/395S-Bearing-p/395s.htm)
- Outer: 28622
Races:
- Inner: 3920
- Outer: 28682
Oil seal:
- Part # 10-56 3.125" ID x 4.500" OD (http://www.fayettedistribution.com/Dexter-10K-15K-Axle-Oil-Seal-10-56-p/10-56.htm)
Main Specs:
- Weight rating: 12,000 lb. capacity
- Hub Face to Hub face: 74"
- Spring Center to Spring Center: 46"
- Bolt Pattern: 8 lug on 6.5"
- Wheel Stud Size: 5/8"
- Drum Pilot Size: 4.75"
- Brake Type: Hydraulic Disc
- Lubrication: Oil Bath
- Axle Seat type: 3" wide slipper spring
- Axle Manufacturer: Dexter Axle
- Part number: 110193 or (110360 w/ springs)
- Warranty: 1 to 5 years depending on the issue
- Axle Warranty -PDF (https://www.dexteraxle.com/user_area/content_media/raw/dexter-limited-warranty-lit-400-00.pdf)
