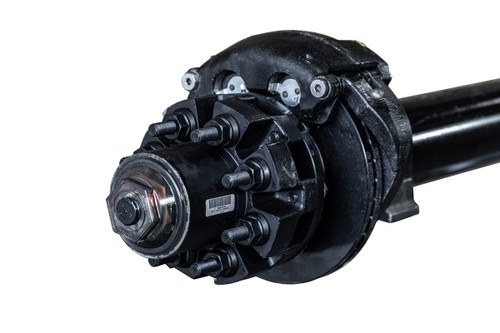

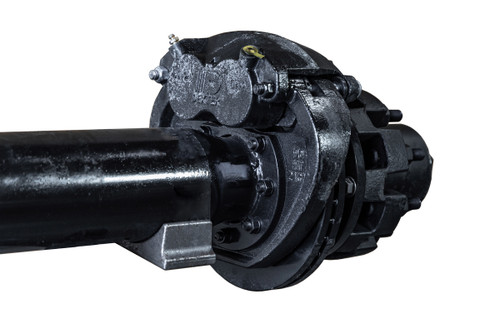

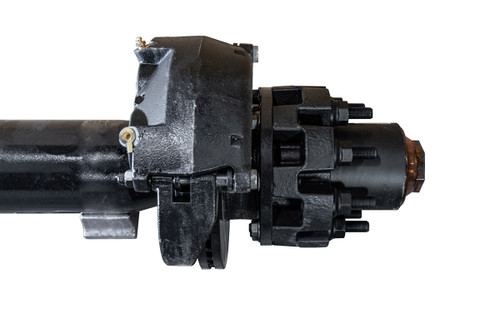

12,000 lb. Axle - Hydraulic Disc Brakes 74" HF 46" SC for Hutch or HDSS

Complete Dexter 12,000 lb Heavy Duty Hydraulic Disc braking trailer axle assembly for Hutch or HDSS suspension

• Includes the calipers, rotors, hubs, bearings, flanged lug nuts
• *DOES NOT INCLUDE U BOLTS OR SPRINGS*
• This is a straight axle with springs seats underneath the axle
• Includes 3" wide spring seats for Hutch, or Dexter's HDSS suspension
• Fits PJ Tandem Dual Trailers (standard after April 2022)

Axle Tube:

• 5" outside diameter 0.440" wall tubing

Spindle Size:

• Heavy duty spindle

Hub / Rotor:

• # 8-214-10 (2 piece) high profile hub with 5/8" studs
• # 70-006-01 Brake Rotor
• #89-002-2 10k / 12k Brake Caliper

Inside components:

Bearings:

• Inner: 3984
• Outer: 28622

Races:

• Inner: 3920
• Outer: 28682

Oil seal: Part # 10-56 3.125" ID x 4.500" OD

Main Specs:

• Weight rating: 12,000 lb. capacity
• Hub Face to Hub face: 74"
• Spring Center to Spring Center: 46"
• Bolt Pattern: 8 lug on 6.5"
• Wheel Stud Size: 5/8"
• Drum Pilot Size: 4.75"
• Brake Type: Hydraulic Disc
• Lubrication: Oil Bath
• Axle Seat type: 3" wide for Hutch or HDSS suspension
• Axle Manufacturer: Dexter Axle
• Part number: 110193 or (110360 w/ springs)
• Warranty: 1 to 5 years depending on the issue
