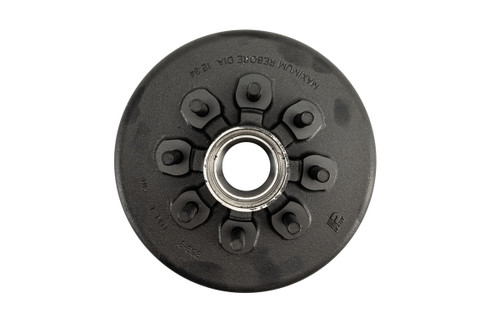

12-1/4"x 2-1/2" Dexter Cast Brake Drum with 5/8" studs - Oil Bath for 7.2K - 8K

(No reviews) Write a Review
$399.99
SKU: 008-393-05
UPC: 876983002191
Weight: 45.10 LBS
Adding to cart… The item has been added
Description
Official Dexter Trailer Axle Hub / Drum for 7,200 and 8,000 lb. Hybrid Dexter axles with 5/8" Studs and Oil Bath Comes with studs, races, installed in the hub.
Drum works with electric drum brakes and oil bath applications
Designed for Dexter axles built After May 2000 with cast backing plate electric brakes
Use with 17.5" single tires and wheels, for 16" wheels use Drum # 008-393-03
Made in USA

Internal Specs:
- Bearings (sold separately)
  • Inner bearing: 25580 (1.750" Inner diameter)
  • Outer Bearing: 02475 (1.250" Inner diameter)
- Races (included)
  • Inner Race: 25520
  • Outer Race: 02420
- Oil Seal (Sold Separately ;#10-63 or 010-063-00
  • Inner Diameter: 2.250"
  • Outer Diameter: 3.376"

Main Specs:
Construction: Cast Iron
Finish: Black Paint
Drum Dimensions: 12-1/4" diameter x 2-1/2" Wide
Hub Pilot: 4.75"
Bolt Pattern: 8 on 6-1/2"
Stud size: 5/8"
Axle Size: 7,200 lbs. and 8,000 lb. Hybrid
Capacity: 3,600 lbs.
