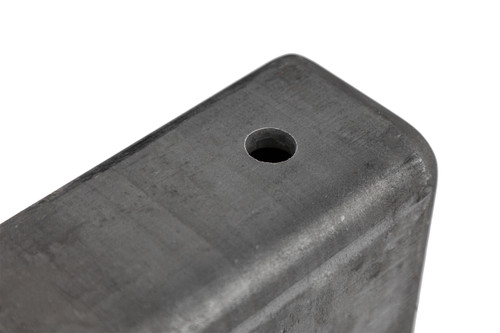

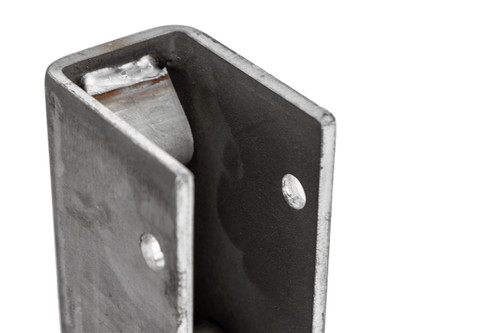

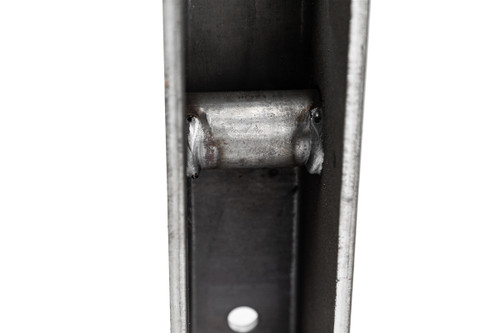

12" Equalizer for 2" Slipper Springs 5,200 lb. - 8,000 lb. Trailer Axles

12" Equalizer for 2" Slipper Springs for 5,200 lb. - 8,000 lb. Trailer Axles

• This 12" long equalizer will ensure your load is distributed properly
• Fits 2" slipper leaf springs.
• Fits 9/16" diameter spring eyes.
• Rated for 4,000 lbs. - works on axles rated up to 8,000 lbs.
• Works on both the driver's side and passenger's side.
• Overall Length: 12" Long - See more dimensions below
• Manufacturer's Part Number: PS-EQ13WB
• Our part number: EQ-5541
• Construction: Structural Steel

This equalizer is designed to distribute the weight evenly over tandem or triple axle trailers. Equalizer will take the shock out your load and result in a smoother ride for your trailer. Made of .30" high-quality hot rolled structural steel. Chart Dimensions:

• (A) 12" equalizer length
• (B) 4.75" front bolt to center
• (C) 4.625" back bolt to center
• (D) 9/16" spring eye bolt
• (E) 7/8" center bolt
• (F) 9/16" spring retainer bolt

Equalizer height : 3.25" Inside width : 2.25" Steel Thickness : .30" The specifications and dimensions are for reference only. Installation Instructions:

• Slide equalizer in center hanger and insert the 7/8" main equalizer bolt (sold separately)
• Slip arched end of front spring into the equalizer and install the retainer bolt (sold separately)
• Attach rear spring with shackle bolt (sold separately) through the eye of spring.
