3,500 lb. 5 Bolt on 4.5" Electric Brake Drum Complete Kit

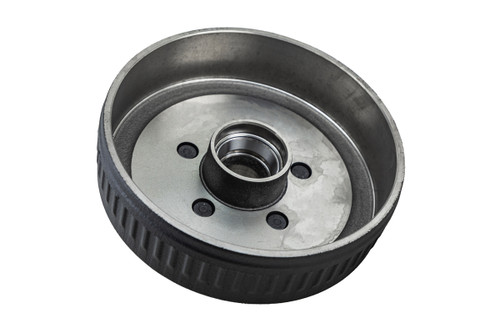

Dexter hub / drum kit for 3,500 lb. electric brake trailer axles. This brake drum comes with studs and races pressed in. Fits Dexter, AL-KO, Quality / Rockwell American, and Axis Axles Drum Dimensions: 10" diameter inside x 2-1/4" width inside Bolt Pattern: 5 on 4-1/2" (most common) Stud size: 1/2" Capacity (per drum): 1,750 lbs Drum comes as a complete kit with bearings, grease seal, grease cap, and lug nuts. If you prefer just the drum by itself with no additional parts, click here: 3,500 lb Drum only 5 bolt on 4.5" Kit Includes

• Bearings:
  • (1) L68149
  • (1) L44649

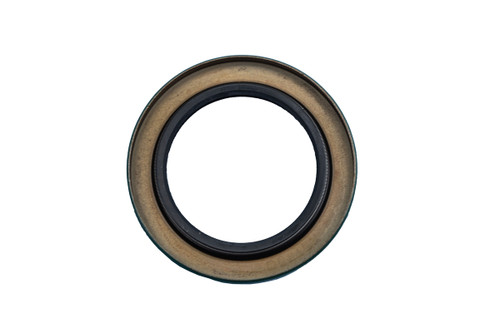

• Grease Seal:
  • (1) 10-19 (1.719" inside diameter)

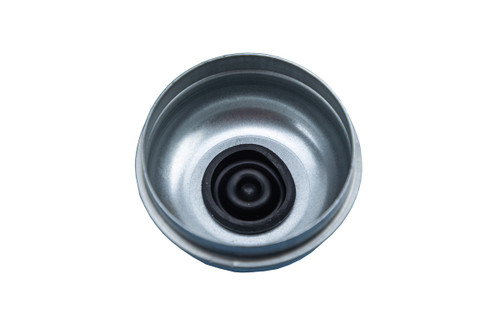

• Grease Cap:
  • (1) 21-41-1 Grease cap
  • (1) 85-1 Rubber Grease Cap Center Plug
• Lug Nuts:
  • (5) 006-080-00 (1/2" Lug Nuts)

Dexter Part number #K08-247-94
