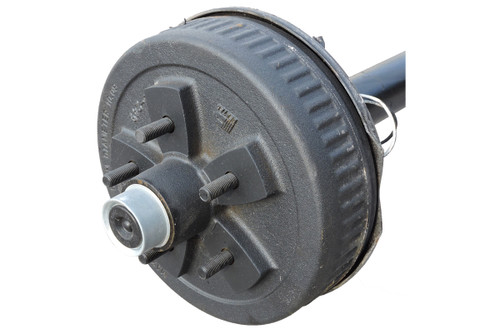

3,500 lb. Trailer Axle - Electric Brakes with 5 on 5" - 73" HF 58" SC

Complete 3,500 lb axle with electric brakes/drums w/ 5 stud on 5" spread • This is a Straight axle with springs seats underneath the axle. • Weight rating: 3,500 lb. capacity • Commonly used on PJ 60" wide utility trailers. • Also used on PJ D5 dump trailers made after April 11, 2014 Axle Details: • Cambered Axle Tube – 2-3/8" outside diameter • Spindle Size – #84 with grease zerk • Hub – #84556 #008-249-07 Drum/Hub with 1/2" wheel studs Inside Components: • Brakes:   – 23-26 LH 10" x 2-1/4" electric brake   – 23-27 RH 10" x 2-1/4" electric brake • Bearings:   – Inner: L68149   – Outer: L44649 • Races:   – Inner: L68111   – Outer: L44610 • Grease seal – Part #10-19 1.719" ID x 2.565" OD Main Specs: • Weight rating: 3,500 lb. capacity • Hub Face to Hub face: 73" • Spring Center to Spring Center: 58" • Bolt Pattern: 5 lug on 5" • Wheel Stud Size: 1/2" • Brake Type: Electric Brakes 10" by 2-1/4" • Lubrication: Zerk-lube spindles with grease zerk.
