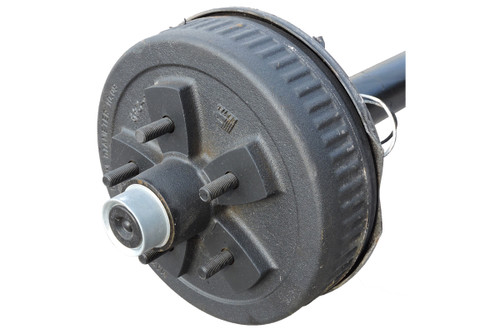

3,500 lb. Trailer Axle - Electric Brakes with5 on 5" 71" HF 57" SC

Complete 3,500 lb axle with electric brakes / drums – 5 stud on 5" spread • Straight axle with springs seats underneath the axle. • Weight rating: 3,500 lb. capacity • Commonly used on PJ D5 dump trailers until April 11, 2014. Check out 110156 if you own a newer dump trailer. Cambered Axle Tube • 2-3/8" outside diameter Spindle Size • #84 with grease zerk Hub • #84556 #008-249-07 Drum / Hub with 1/2" wheel studs Inside components:  Brakes:   • 23-26 LH 10" x 2-1/4" electric brake   • 23-27 RH 10" x 2-1/4" electric brake  Bearings:   • Inner: L68149   • Outer: L44649  Races:   • Inner: L68111   • Outer: L44610  • Grease seal: Part #10-19 1.719" ID x 2.565" OD Main Specs: • Weight rating: 3,500 lb. capacity • Hub Face to Hub face: 73" • Spring Center to Spring Center: 58" • Bolt Pattern: 5 on 5" • Wheel Stud Size: 1/2" • Brake Type: Electric Brakes 10" by 2-1/4" • Lubrication: Zerk-lube spindles with grease zerk
