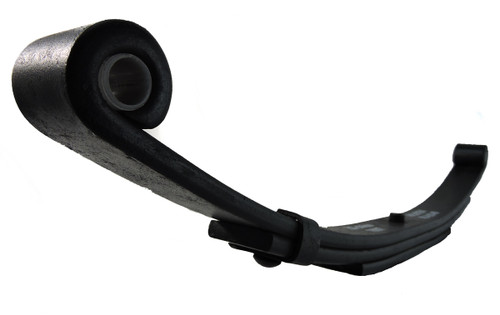

3-Leaf Double Eye Spring for 3,500 lb. Trailer Axles - 25-1/4" Long

This is a double eye spring is a 3 leaf 1,750 lb capacity spring
Multiple leaf spring will flex to absorb road shock and provide a smooth ride
Springs reduce wear and tear on your trailer.
(2) 9/16" Nylon bushings included with spring.
Can be used on 2,000 - 3,500 lb trailer axles.

SPECS
Single Spring Capacity: 1,750 lbs
Axle Capacity: 3,500 lbs
Thickness of Leaves: 3/8"
Number of Leaves: 3
Spring width: 1-3/4"
Spring length eye to eye: 25-1/4"
Spring Eye size: 9/16"
Manufacturer: Axletek
Construction: Steel
Finish: Black Paint
Part number: MLA-220-00
Crossover part numbers: MLA-220-00, PR3, SP-202275, UNA-220

Installation Instructions:

• Eye of spring will attach by a 9/16" bolt to front hanger mounted to trailer or to shackle straps from equalizer.
• Rear eye will then attach by another 9/16" bolt to rear hanger or to shackle straps from equalizer.
• Suggested to insert new suspension bolts and tighten to manufacturer's specs.
