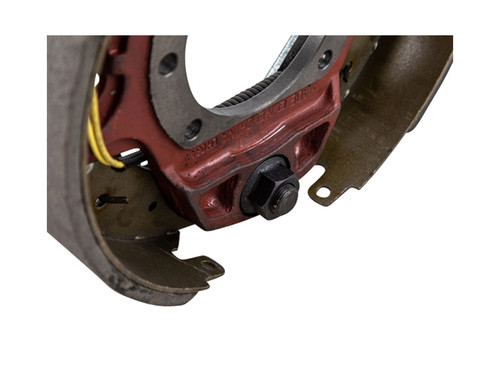

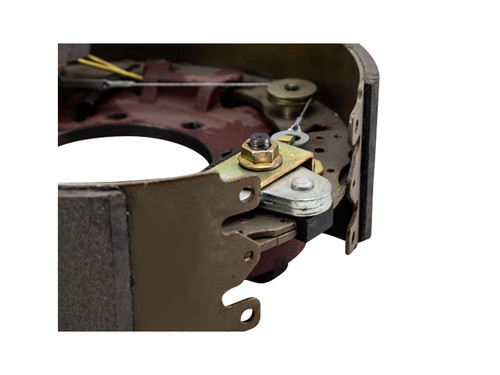

4" wide 10K Heavy Duty Dexter Electric Brake Assembly - Right Hand

Complete right hand (passenger's side) electric brake assembly for 10,000 lb. Heavy Duty axles. Work on Dexter Brand axles Note: This is for HD 10,000 lbs only; the 10,000 general duty brakes are 3-3/8" wide not 4" Simply bolts on to the axle flange with 7 Bolts (not included) and hook up the 2 electrical wires. These are forward Self-Adjusting brakes – requires no manual adjustment Works with 4" wide hub/drum assemblies Pads are fully bonded (no rivets) for long life and reliability Zinc plated components provide resistance to rust and corrosion Brake assembly does not come with a steel dust shield Main Specs: • Brake Size: 12-1/4" Diameter x 4" wide • Mounting Position: Right Hand (Passenger's side) • Adjust type: Forward Self-Adjusting • Mounting Flange type: 7 bolt • Part numbers: B1210EHD-12 • Dexter Crossover number: K23-439-00 or 023-439-00
