42-1/4" Equalizer Hanger Kit for 2-1/2" Wide Slipper Springs - 10K General Duty

This complete center tandem axle suspension kit will work for axles with a 42-1/4" spacing.

Features:

• Fits 2-1/2" wide slipper leaf springs
• Equalizer length: 18.42"
• Axle Spacing: 42.25"
• Rated for 10,000 lb General Duty Axles, Dexter or Lippert Axles
• Manufacturer's Part Number: PS-EQK07
• Our part number: HAP-258-02
• Construction: Steel -Raw

Note: For a complete tandem axle kit combine this kit with the single axle kit # HAP-158-00. Also note that this kit does not include components to mount the axle to the slipper springs.

Kit Contents:

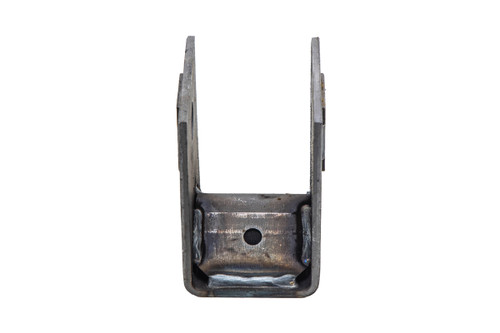

• (2) 4-1/2" tall center hangers with 1" bolt holes (029-042-02)
• (2) 18-3/8" 2-1/2" wide equalizers (013-140-03)
• (2) 4-1/2" long by 3/4" front spring eye bolts (007-264-00)
• (2) 3/4" diameter lock nut (006-113-00)
• (2) 5-1/4" long by 1" equalizer bolt (007-169-00)
• (2) 1" diameter locknut (006-112-00)

The specifications and dimensions are for reference only.
