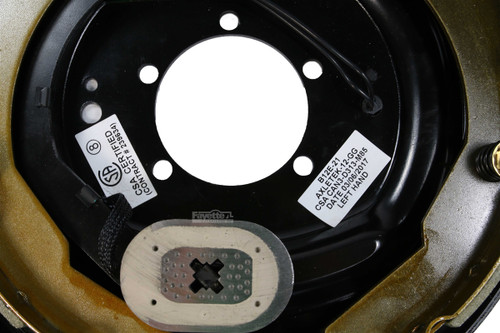

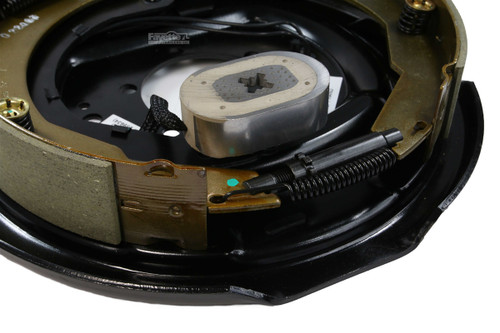

- Complete left hand (driver side) electric brake assembly for 5,200 lb, 6,000 lb, and 7,000 lb axles.
- Simply bolts on to the axle flange with 5 bolts (not included) and hook up the 2 electrical wires.
- Works with most standard hub/drum assemblies including Dexter, Lippert(LCI) Rockwell American & Al-KO
- Brakes are QAI & CSA certified and pads are fully bonded (no rivets) for long life and reliability
- E-Coated backing plates and zinc plated components provide resistance to rust and corrosion
- Rear plastic adjuster plugs are included to cover access holes
Main Specs:
- Brake Size: 12" Diameter x 2" wide
- Mounting Position: Left Hand (Driver's side)
- Adjust type: Manuel
- Mounting Flange type: 5 bolt
- Manufacturer: Axle Teknology LLC.
- Part numbers: B12E-21
- Warranty: Limited 1 Year
Fits common name brand axles like Dexter, AL-KO, Rockwell American, Quality and more.
Brake assembly crossover part number reference chart:
|
Quality / Rockwell |
Dexter 6,000 lb |
Dexter 7,000 lb |
Axle Tek |
AL-KO Axis |
Redline Packaged |
Nuera 5,200 - 6,000 lb |
Nuera 7,000 lb |
| Left Hand Side |
4704-L |
K23-105-00 |
K23-180-00 |
B12E-21 |
363233.2 |
EB01-120 |
55-27410 |
55-27420 |
| Right Hand Side |
4704-R |
K23-106-00 |
K23-181-00 |
B12E-22 |
363233.1 |
EB01-125 |
55-27411 |
55-27421 |
Axle Technology Quality :
QAI Testing and CSA certification:
These brake assemblies meet and exceed the requirements for Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. In addition these brakes have also been tested by QAI for braking performance in a complete automotive setup, and under real-world conditions. This provides the most realistic scenarios that the everyday driver will see and ensures the brake is built with safety and quality in mind.
Automotive-Grade Friction Material:
Axle Technology brought the power of automotive-grade friction material to the trailer brake market. This provides improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe. The lining is custom-molded on the shoe which provides a perfect fit as well as eliminates or reduces the chance of cracking and crumbling. In addition, tapered edges protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified. SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result, this material not only provides high-performance braking that stands the test of time, but it is also environmentally friendly and safe to use in both the United States and Canada.
