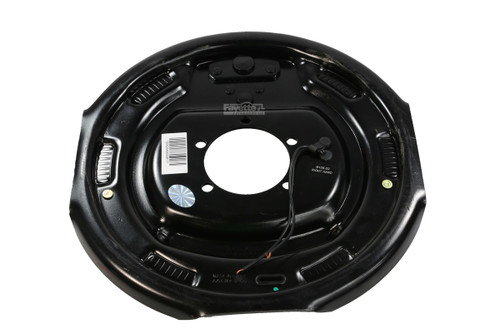

Complete right hand (passenger's side) electric brake assembly for 5,200 lb, 6,000 lb, and 7,000 lb axles.
• Simply bolts on to the axle flange with 5 bolts (not included) and hooks up the 2 electrical wires.
• Works with most standard hub/drum assemblies including Dexter, Lippert (LCI), Rockwell American, and Al-KO.
• Brakes are QAI and CSA certified; pads are fully bonded (no rivets) for long life and reliability.
• E-coated backing plates and zinc plated components resist rust and corrosion.
• Rear plastic adjuster plugs are included to cover access holes.
Main Specs:
• Brake Size: 12" Diameter x 2" wide
• Mounting Position: Right Hand (Passenger's side)
• Adjust type: Manuel
• Mounting Flange type: 5 bolt
• Manufacturer: Axle Teknology LLC.
• Part numbers: B12E-22
• Warranty: Limited 1 Year
Fits common name brand axles like Dexter, AL-KO, Rockwell American, Quality and more.
Brake assembly crossover part number reference chart:
Quality / Rockwell Dexter 6,000 lb Dexter 7,000 lb Axle Tek AL-KO Axis Redline Packaged Nuera 5,200 - 6,000 lb Nuera 7,000 lb
Left Hand Side 4704-L K23-105-00 K23-180-00 B12E-21 363233.2 EB01-120 55-27410 55-27420
Right Hand Side 4704-R K23-106-00 K23-181-00 B12E-22 363233.1 EB01-125 55-27411 55-27421
Axle Technology Quality:
QAI Testing and CSA certification:
These brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. In addition, these brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions. This provides realistic scenarios that the everyday driver experiences while ensuring the brake is built with safety and quality in mind.
Automotive-Grade Friction Material:
Axle Technology brought the power of automotive-grade friction material to the trailer brake market. This provides improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe. The lining is custom-molded on the shoe, which provides a perfect fit and reduces the chance of cracking and crumbling. In addition, tapered edges protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified. SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result, this material provides high-performance braking that stands the test of time while being environmentally friendly and safe to use in both the United States and Canada.
