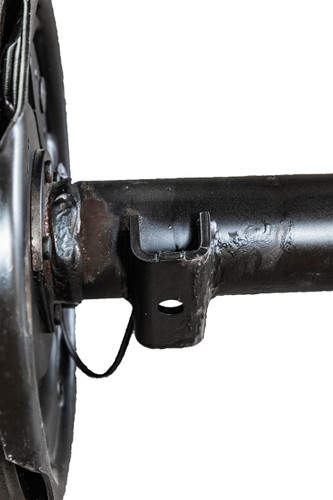

5,200 lb. Trailer Axle - Electric Brakes 83" Hub Face 68" Spring Center

Straight axle with springs seats underneath the axle.

Weight rating: 5,200 lb. capacity
Used on PJ (D3) Dump trailers

• Cambered Axle Tube: 3" outside diameter - light wall tubing
• Spindle Size: #42 with grease zerk
• Hub: # 8-201-05 Drum with 1/2" wheel studs
• Inside components:
  • Brakes:
    • 23-105 LH 12" x 2" electric brake
    • 23-106 RH 12" x 2" electric brake
  • Bearings:
    • Inner: 25580
    • Outer: LM67048
  • Races:
    • Inner: 25520
    • Outer: LM67010
  • Grease seal: Part # 10-10 2.125" ID x 3.376" OD
• Main Specs:
  • Weight rating: 5,200 lb. capacity
  • Hub Face to Hub face: 83"
  • Spring Center to Spring Center: 68"
  • Bolt Pattern: 6 lug on 5.5"
  • Wheel Stud Size: 1/2"
  • Brake Type: Electric Brakes 12" by 2"
  • Lubrication: Zerk lube spindles with grease zerk
