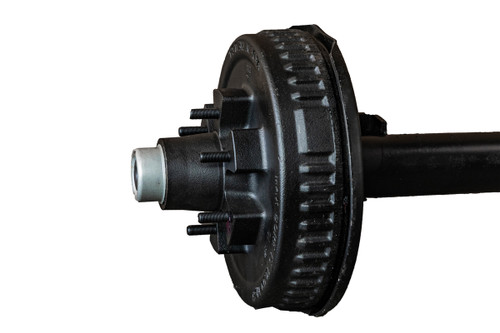

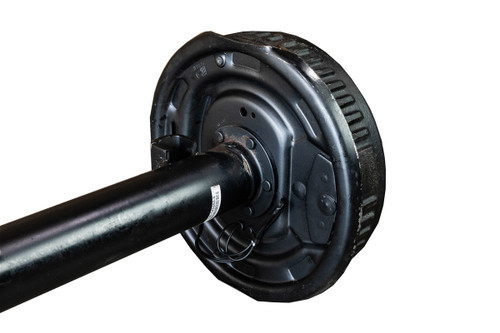

5,200 lb. Trailer Axle - Electric Brakes 95" HF 80" SC

• Complete 5,200 lb. trailer axle – electric brakes & drums with 6 –1/2" studs • 95" hubface with an 80" spring center • Straight axle with springs seated underneath the axle • Cambered Axle Tube • 3" outside diameter – light wall tubing • Spindle Size • #42 with grease zerk • Hub • # 8-201-05 Drum with 1/2" wheel studs • Inside Components • Brakes   • 23-105 LH 12" x 2" electric brake   • 23-106 RH 12" x 2" electric brake • Bearings   • Inner: 25580   • Outer: LM67048 • Races   • Inner: 25520   • Outer: LM67010 • Grease Seal: Part # 10-10 2.125" ID x 3.376" OD • Main Specs • Weight rating: 5,200 lb. capacity • Hub Face to Hub face: 95" • Spring Center to Spring Center: 80" • Bolt Pattern: 6 lug on 5.5" • Wheel Stud Size: 1/2" • Brake Type: Electric Brakes 12" by 2" • Lubrication: EZ lube spindles with grease zerks
