Dexter 5,500-7,000 lb axle replacement caliper kit.
This caliper fits both the left or right hand side of your trailer.
Caliper is designed with 4 pistons that push from both directions.
Made from cast iron construction with a black paint finish.
Designed to work with 15, 16", 16.5", and 17.5" wheels.
Wrenches and paper instructions included for ease of installation.
Kit Includes:
• (4) Caliper Mounting Nut # 006-045-00
• (4) Caliper Mounting Bolt # 007-254-00
• (1) Nut #006-289-00

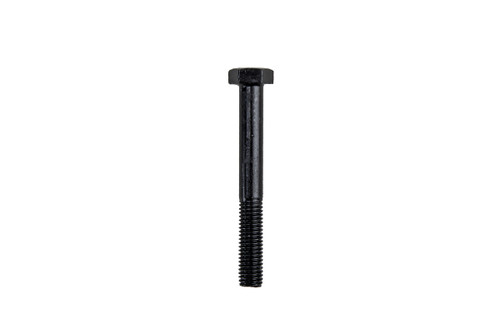

• (1) Hex Bolt #007-469-00
• (1) Cotter Ring #019-019-00
• (1) Tube Clamp # 027-060-00

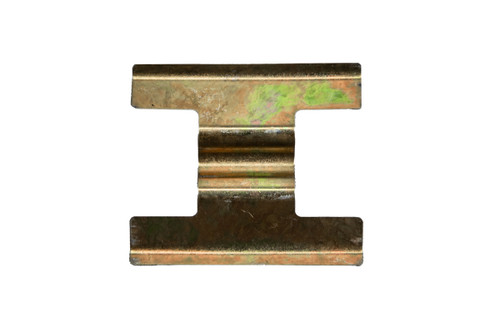

• (1) Anti-Rattle Spring # 046-145-00
• (1) Spring Tension Clip # 046-218-00
• (1) Bleeder Screw # 054-092-00

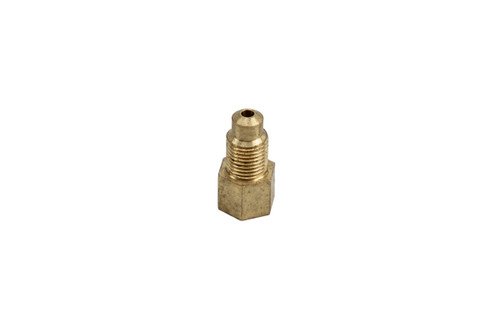

• (1) Adapter Fitting # 054-094-00
• (1) Hydraulic Cross Over Line
• (1) Hex Bolt # 087-002-00

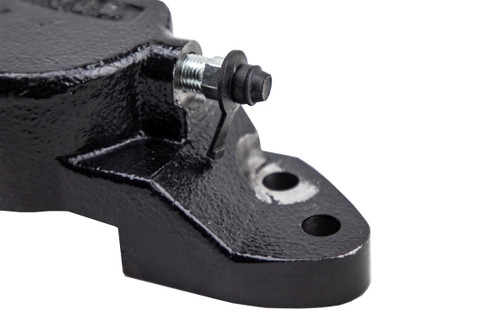

• (2) Cast Assembled Caliper Half Piece # 089-005-06
• (2) Wrench 8, 10, 13 and 16 MM
• (1) Allen wrench
• (1) Paper Installation Instructions
Main Specs:
• Manufacturer: Axle Teknology
• Position: Left or Right Hand
• Part Number: A71-630-00 or AK71-630-00
• Dexter's Crossover Part Number: K71-693-00
• Warranty: 1 Year Warranty
• 7K Diagram: All Items Marked #2
Axle Technology Quality:
QAI Testing and CSA certification:
These brake assemblies meet and exceed the requirements for Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. In addition, these brakes have also been tested by QAI for braking performance in a complete automotive setup, under real-world conditions. This provides realistic scenarios for the everyday driver and ensures the brake is built with safety and quality in mind.
Automotive-Grade Friction Material:
Axle Technology brings the power of automotive-grade friction material to the trailer brake market, providing improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe. The lining is custom-molded to provide a perfect fit and reduce the chance of cracking or crumbling. In addition, tapered edges protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified. SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result, it not only provides high-performance braking that stands the test of time but is also environmentally friendly and safe to use in both the United States and Canada.
