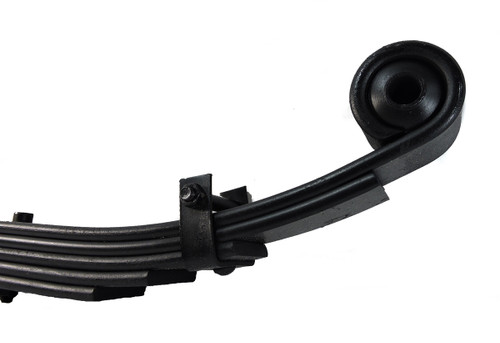

5-Leaf 2-1/2" with Slipper Spring for 10,000 lb. Axles 30" Long (Spring Eye 3/4")

5 leaf slipper spring with a 5,000 lb capacity. Multiple leaf spring will flex to absorb road shock and provide a smooth ride Springs reduce wear and tear on your trailer Found on 9,000 & 10,000 lb Dexter or Lippert axles. 3/4" eye rubber bushing included with spring Used on PJ Trailers built 2015 and later with Dexter 10,000 lb axles. SPECS - Single Spring Capacity: 5,000 lbs - Axle Capacity: 10,000 lbs - Thickness of Leaves: 7/16" - Number of Leaves: 5 - Spring width: 2-1/2" - Spring length: 30-1/2" - Spring Eye size: 3/4" - Manufacturer: AxleTek - Construction: Steel - Finish: Black Paint - Part number: ML-080-01 - Crossover part numbers 72-80, ML-08-01, 120104, UNA-298 Installation Instructions: - Eye of spring will attach to front hanger mounted to the trailer frame or to the center of the equalizer. - Slipper end of the spring will slid into the equalizer or the rear axle hanger. - Suggested to insert new suspension bolts and tighten to the manufacturer's specs.
