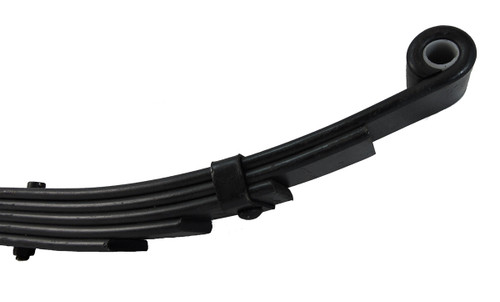

5-Leaf Double Eye Spring for 6,000 lb. Trailer Axles - 25-1/4" Long

Double eye 5 leaf spring with a 3,000 lb capacity.
Multiple leaf spring will flex to absorb road shock and provide a smooth ride.
Springs reduce wear and tear on your trailer
(2) 9/16" Nylon bushings included with spring
Can be used on 5,000 - 6,000 lb trailer axles

• SPECS
• Single Spring Capacity: 3,000 lbs
• Axle Capacity: 6,000 lbs
• Thickness of Leaves: 3/8"
• Number of Leaves: 5
• Spring width: 1-3/4"
• Spring length eye to eye: 25-1/4"
• Spring Eye size: 9/16"
• Manufacturer: Axletek
• Construction: Steel
• Finish: Black Paint
• Part number: MLA-111-00
• Crossover part numbers: MLA-111-00, PR5, SP-111275, UNA-111

Installation Instructions:

• Eye of spring will attach by a 9/16" bolt to front hanger mounted to trailer or to shackle straps from equalizer.
• Rear eye will then attach by another 9/16" bolt to rear hanger or to shackle straps from equalizer.
• Suggested to insert new suspension bolts and tighten to manufacturer's specs.
