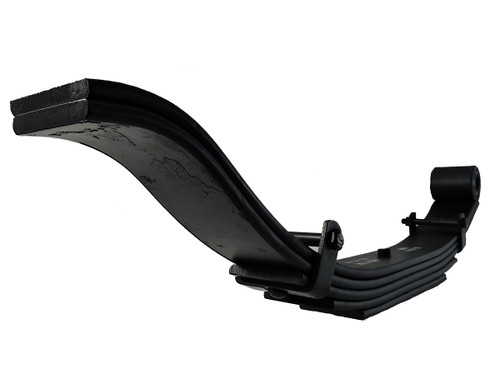

5-Leaf Slipper Spring for 10,000 lb. Axles 30-1/2" Long

5 leaf slipper spring with a 5,000 lb capacity for use on 10,000 lb trailer axles. Multiple leaf spring will flex to absorb road shock and provide a smooth ride. Springs reduce wear and tear on your trailer. Found on most HD 10k Dexter / Lippert axles. 1" eye rubber bushing included with spring. Used on most Dexter HD 10K axles PJ trailers built in 2015 and newer.

SPECS

• Single Spring Capacity: 5,000 lbs
• Axle Capacity: 10,000 lbs
• Thickness of Leaves: 3/8"
• Number of Leaves: 5
• Spring width: 3"
• Spring length: 30-1/2"
• Spring eye size: 1"
• Manufacturer: AxleTek
• Construction: Steel
• Finish: Black Paint
• Part number: ML-043-01 or ML-043-00
• Crossover part numbers: 72-43-1, ML-043-01, 120094, UNA-268, SP-268275, 072-043-01, ML-043-00

Installation Instructions:

• Eye of spring will attach to front hanger mounted to the trailer frame or to the center of the equalizer.
• Slipper end of the spring will slide into the equalizer or the rear axle hanger.
• Suggested to insert new suspension bolts and tighten to the manufacturer's specs.
