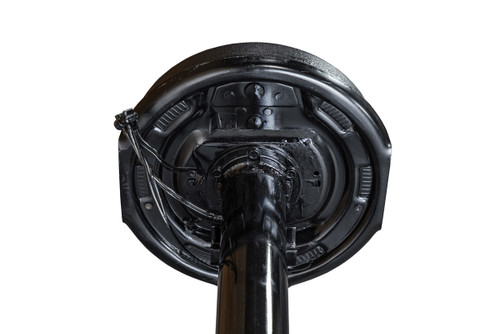

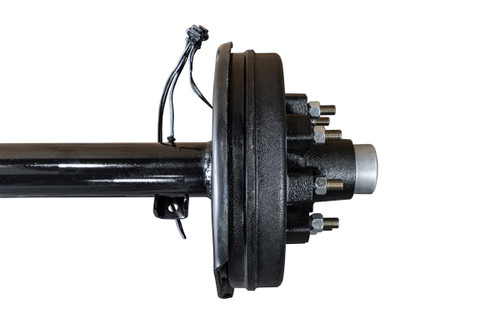

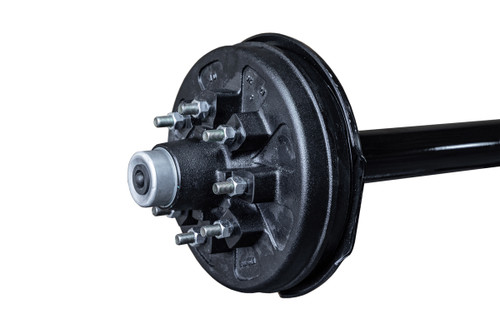

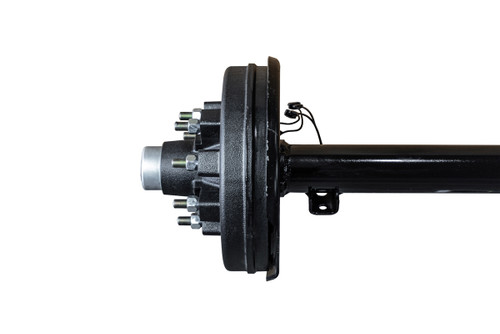

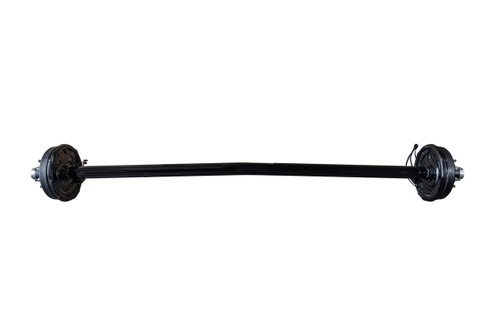

7,000 lb. Axle - Electric Brakes with 9/16" studs - 89" HF 74" SC

• Complete 7,000 lb. trailer axle – electric brakes & drums w/ 8-9/16" studs • 89" hubface with a 74" spring center • Straight axle with spring seats underneath the axle • Weight rating: 7,000 lb. capacity • Cambered Axle Tube • 3" outside diameter – medium wall tubing • Spindle Size • #42 with grease zerk • Hub • 8-219-13 Drum/Hub with 9/16" wheel studs • Inside components • Brakes • 23-180 LH 12" x 2" electric brake • 23-181 RH 12" x 2" electric brake • Bearings • Inner: 25580 • Outer: 14125A • Races • Inner: 25520 • Outer: 14276 • Grease seal: Part # 10-36 2.250" ID x 3.376" OD • Main Specs • Weight rating: 7,000 lb. capacity • Hub Face to Hub face: 89" • Spring Center to Spring Center: 74" • Bolt Pattern: 8 lug on 6.5" • Wheel Stud Size: 9/16" • Brake Type: Electric Brakes 12" by 2" • Lubrication: Zerk lube spindles with grease zerks Image: /v/vspfiles/assets/images/How to Measure Hub face3.jpg
