7,000 lb. Axle - Hydraulic Disc 75" HF 58" SC

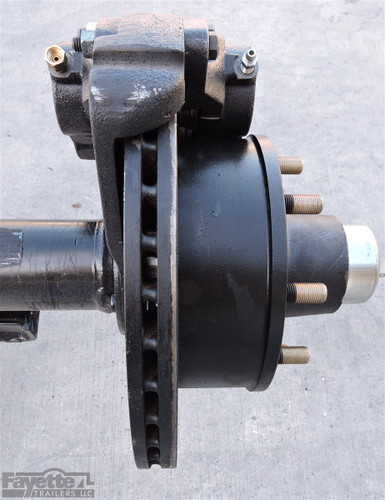

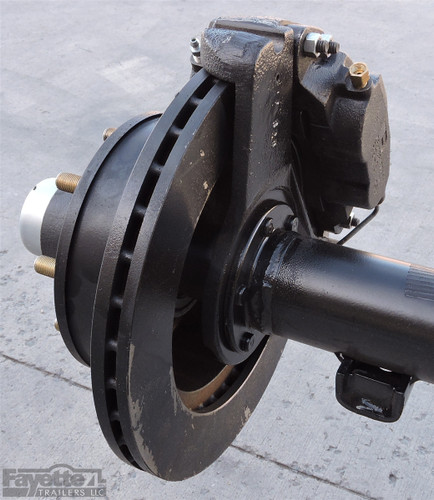

Complete Dexter 7,000 lb hydraulic disc brake axle assembly 75" HF x 58" SC • Straight axle with spring seats underneath the axle • Fits PJ Trailers models F8, SY, PT, T8, DN, D8, DS and with disc brakes Cambered Axle Tube • 3" outside diameter – medium wall tubing Spindle Size • #42 with grease zerk Hub • # 008-416-12 EZ-lube Rotor/Hub with 9/16" wheel studs Inside Components • Brakes  – # K71-693-00 Brake Caliper Assembly Kit for LH and RH  – # K71-629-00 Brake Pad Kit • Bearings  – Inner: 25580  – Outer: 14125A • Races  – Inner: 25520  – Outer: 14276 • Grease seal  – Part # 10-36, 2.250" ID x 3.376" OD Main Specs • Weight rating: 7,000 lb. capacity • Axle Hub Face to Hub face: 75" • Spring Center to Spring Center: 58" • Bolt Pattern: 8 lug on 6.5" • Wheel Stud Size: 9/16" • Brake Type: Hydraulic disc brakes • Lubrication: EZ lube spindles with grease • Manufacturer: Dexter • Warranty: 1 year to 5 years limited warranty depending on issue
