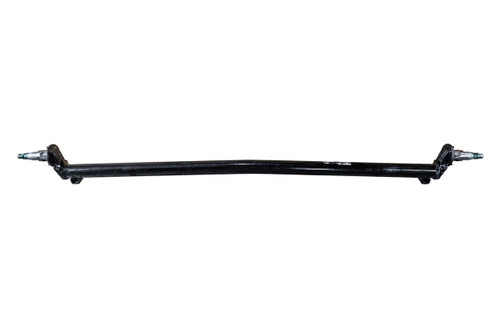

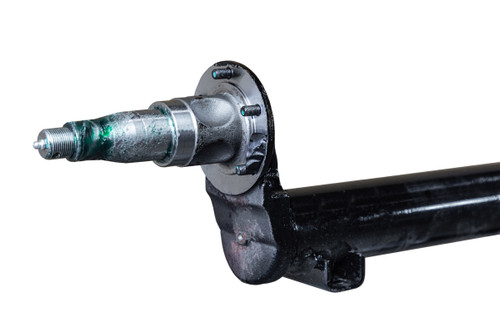

7,000 lb. Trailer Axle 4" Drop Beam Only- 95" HF 78" SC

• Complete 7,000 lb 4" drop replacement axle beam only • Axle tube, brake flanges, and axle spindles • This is a 4" drop axle beam with springs seats underneath the axle • Note: This beam is used on some PJ trailer DL & DM dump trailers • Cambered Axle Tube: • 3" outside diameter - medium wall tubing • Spindle Size: • #42 with grease zerk • Inside components: NOT INCLUDED • Bearings: NOT INCLUDED • Inner: 25580 • Outer: 14125A • Races: NOT INCLUDED • Inner: 25520 • Outer: 14276 • Grease seal: Part # 10-36 2.250" ID x 3.376" OD (NOT INCLUDED) • Main Specs: • Axle Weight rating: 7,000 lb. capacity • Hub Face to Hub face: 95" • Spring Center to Spring Center: 78" • Brake Flange: 5 Bolt for 12" x 2" brakes • Lubrication: Zerk lube spindles built with grease zerk • Part Number: 110054
