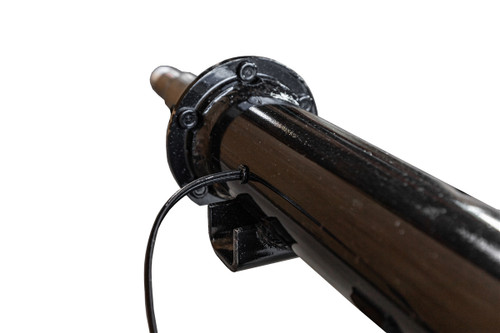

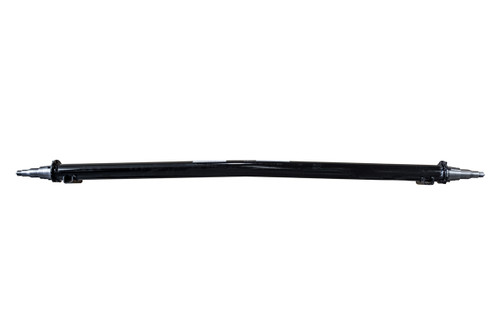

Complete 7,000 lb. replacement axle beam only built 73" HF x 58" SC axle tube, brake flanges, and axle spindles. This is a straight axle beam with spring seats underneath the axle. Commonly PJ Trailers models: Older FS models and F8 Deckovers.
Cambered Axle Tube:
3" outside diameter - medium wall tubing
Spindle Size:
#42 with grease zerk
Inside components: NOT INCLUDED
Bearings: NOT INCLUDED
Inner: 25580
Outer: 14125A
Races: NOT INCLUDED
Inner: 25520
Outer: 14276
Grease seal: Part # 10-36 2.250" ID x 3.376" OD
Main Specs:
Axle Weight rating: 7,000 lb. capacity
Hub Face to Hub face: 73"
Spring Center to Spring Center: 58"
Brake Flange: 5 Bolt for 12" x 2" brakes
Lubrication: Zerk lube spindles – comes with a grease zerk
Complete 7,000 lb. replacement axle beam built to 95" HF x 80" SC
Axle tube, brake flanges, and axle spindles
Straight axle beam with spring seats underneath the axle
Standard with grease...
• Complete 7,000 lb replacement axle beam.
• Axle tube, brake flanges, and axle spindles.
• This is a straight axle beam with springs seats underneath the axle.
• Note: Standard Axle beam on PJ...
Complete 7,000 lb replacement axle beam only built to 95" HF x 78" SC
Axle tube, brake flanges, and axle spindles
This is a straight axle beam with spring seats underneath the axle
Comes...
Complete 7,000 lb. trailer axle - electric brakes & drums w/ 8- 9/16" studs
73" hubface with a 58" spring center
Straight axle with springs seats underneath the axle
Weight rating: 7,000...
• Complete 7,000 lb 4" drop replacement axle beam only
• Axle tube, brake flanges, and axle spindles
• This is a 4" drop axle beam with springs seats underneath the axle
• Note: This beam...
