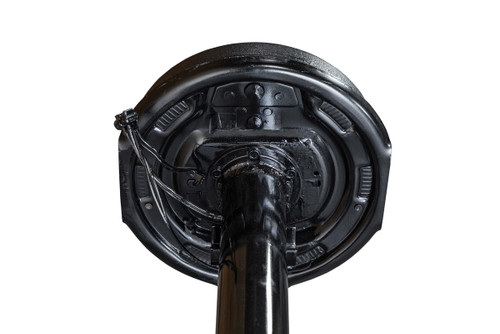

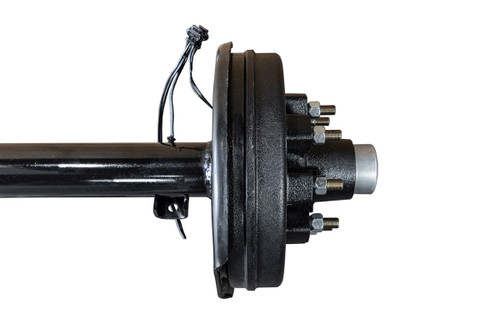

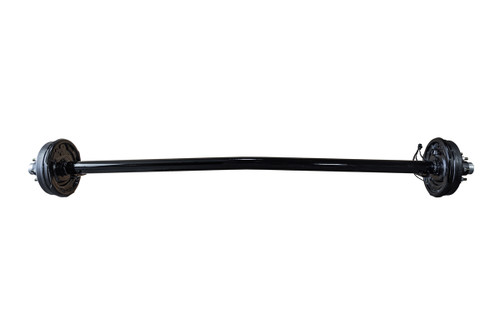

7,000 lb. Trailer Axle - Complete with Electric Brakes 82" HF 66" SC

• Complete 7,000 lb. electric brake axle assembly • Straight axle with springs seats underneath the axle • Weight rating: 7,000 lb. capacity • Fits PJ Trailers models LS and FS built after March 15, 2016 • Cambered Axle Tube • 3" outside diameter – medium wall tubing • Spindle Size • #42 with grease zerk • Hub • 8-219-13 Drum / Hub with 9/16" wheel studs • Inside components • Brakes • 23-180 LH 12" x 2" electric brake • 23-181 RH 12" x 2" electric brake • Bearings • Inner: 25580 • Outer: 14125A • Races • Inner: 25520 • Outer: 14276 • Grease seal: Part # 10-36 2.250" ID x 3.376" OD • Main Specs • Weight rating: 7,000 lb. capacity • Axle Hub Face to Hub face: 82" • Spring Center to Spring Center: 66" • Bolt Pattern: 8 on 6.5" • Wheel Stud Size: 9/16" • Brake Type: Electric Brakes 12" by 2" • Lubrication: Zerk lube spindles w/grease zerk • Part number: 110063
