7-3/4" Curved Equalizer for 1-3/4" Double Eye Springs - 9/16" Center Hole

Trailer Suspension Equalizer - EQ-E1

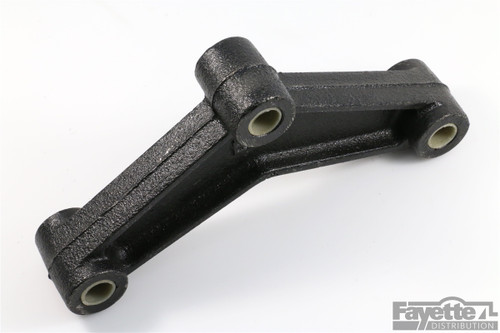

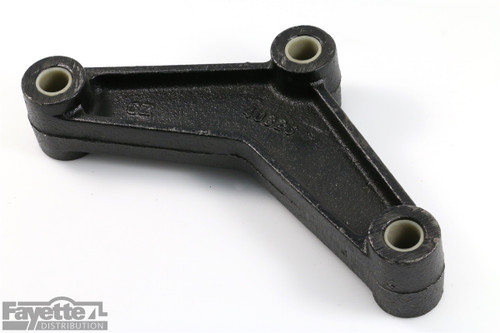

7-3/4" Long curved equalizer connects double-eye springs on tandem or triple axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Center bolt hole is 9/16" in diameter.

Features:

• Connects double-eye springs on dual- or triple-axle trailers
• Springs attach to ends of equalizer with shackle straps (sold separately)
• Equalizer is suspended from center hanger (sold separately)
• Transfers load and sudden impacts from one axle to another by permitting movement between the axles
• Distributes weight evenly
• Results in smooth ride for trailer

Specs:

• Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
• Center bolt hole diameter: 9/16"
• Left and right bolt hole diameter: 9/16"
• Dimensions: see diagram below
