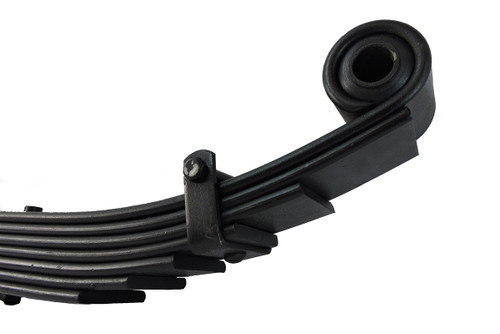

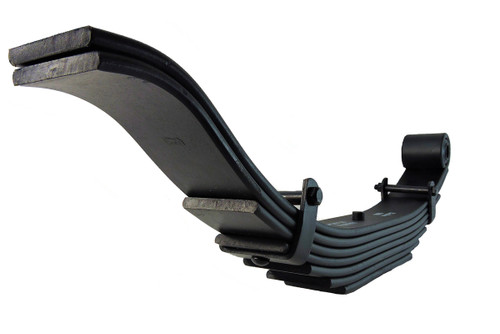

7-Leaf Slipper Spring for 15,000 lb. Trailer Axles 3" widex30-1/2" long

7 leaf slipper spring with a 7,500 lb capacity for use on HD 15,000 lb trailer axles. Multiple leaf spring will flex to absorb road shock and provide a smooth ride. Springs reduce wear and tear on your trailer. Found on trailers with 15k Dexter and Lippert axles. 1" eye rubber bushing included with spring. Used on with Dexter & Lippert 15,000 lb axles. SPECS Single Spring Capacity: 7,500 lbs Axle Capacity: 15,000 lbs Thickness of Leaves: 3/8" Number of Leaves: 7 Spring width: 3" Spring length: 30-1/2" Spring eye size: 1" Manufacturer: AxleTek Construction: Steel Finish: Black Paint Part number: ML-045-00 Crossover part numbers: 72-45-1, ML-045-00, 120097, UNA-270, SP-270275, 072-045-01 Installation Instructions:

• Eye of spring will attach to front hanger mounted to the trailer frame or to the center of the equalizer.
• Slipper end of the spring will slid into the equalizer or the rear axle hanger.
• Suggested to insert new suspension bolts and tighten to the manufacturer's specs.
