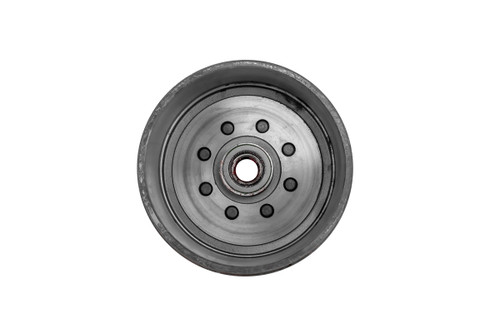

8,000 lb. Brake Hub & Drum with 5/8" Studs - Grease

Official Dexter Trailer Axle Hub / Drum for 8,000 lb. Dexter axles with 5/8" Studs and Grease Comes with studs, races, installed in the hub. Drum works with both electric drum brakes, and hydraulic drum brakes. Designed for grease lubrication only, for oil applications use part # 008-285-10 Use with 17.5" single tires and wheels, for 16" use Drum # 008-285-11 or #008-285-09 Made in USA Internal Specs: - Bearings (sold separately)

• Inner bearing: 25580 (1.750" Inner diameter)
• Outer Bearing: 02475 (1.250" Inner diameter)

- Races (included)

• Inner Race: 25520
• Outer Race: 02420

- Grease Seal (Sold Separately ;#10-36 or 010-036-00)

• Inner Diameter: 2.250"
• Outer Diameter: 3.376"

Main Specs: Construction: Cast Iron Finish: Black Paint Drum Dimensions: 12-1/4" diameter x 3-3/8" Wide Hub Pilot: 4.75" Bolt Pattern: 8 on 6-1/2" Stud size: 5/8" Capacity: 4,000 lbs To buy this drum / hub complete with Bearings, oil seal, oil cap etc, #K08-285-97
