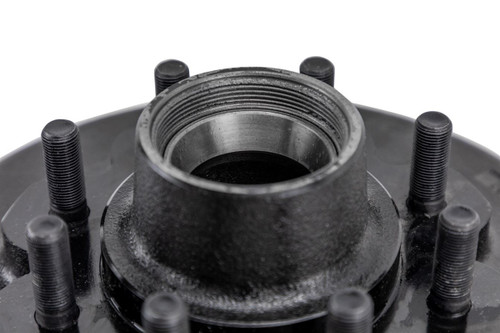

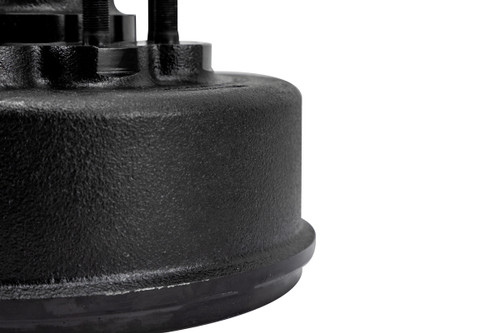

Axle Tek. Trailer Axle Hub / Drum for 8,000 lb. Dexter or Lippert axles with 5/8" Studs and Oil
Comes with studs, races, installed in the hub.
- Drum works with both electric drum brakes and hydraulic drum brakes.
- Designed for oil lubrication; can also be used for grease but requires a screw-on cap instead of press-in.
- Use with 17.5" single tires and wheels; for 16" use a drum with 9/16" studs.
- Interchanges with Dexter #008-285-10 and Lippert #2772121.
Internal Specs:
- Bearings (sold separately)
- Inner bearing: 25580 (1.750" inner diameter)
- Outer Bearing: 02475 (1.250" inner diameter)
- Races (included)
- Inner Race: 25520
- Outer Race: 02420
- Grease Seal (Sold Separately; #10-36 or 010-036-00)
- Inner Diameter: 2.250"
- Outer Diameter: 3.376"
Main Specs:
- Construction: Cast Iron
- Finish: Black Paint
- Drum Dimensions: 12-1/4" diameter x 3-3/8" wide
- Hub Pilot: 4.75"
- Bolt Pattern: 8 on 6-1/2"
- Stud size: 5/8"
- Capacity: 4,000 lbs
To buy this drum/hub complete with bearings, oil seal, oil cap, etc., #GBD-86580-26
Axle Teknology Quality Explained:
These hub and drum assemblies have met and exceeded the requirements of the Canadian Standards Association (CSA). CSA certification creates a standard to ensure a safe and high quality product. This drum has also been tested by a third-party company (QAI) for braking performance in a complete automotive/trailer setup and under real-world conditions. This drum assembly has passed rigorous testing to help you move with confidence.
