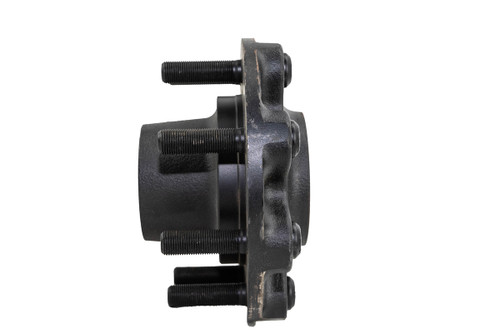

8,000 lb. Disc Brake Hub Only - Oil with 5/8" Studs

fficial Dexter 8,000 lb. Disc Brake Hub Only - Oil w/5/8" Studs
Designed to work with slip over rotors
Comes with studs, races, installed in the hub.
Includes an E-coat for corrosion resistance
Works with 16", 16-1/2", and 17.5" wheels

• Bearings (not included):
  • Inner Bearing: 25580
  • Outer Bearing: 02475
• Races (included):
  • Inner Race: 25520
  • Outer Race: 02420
• Oil Seal (not included):
  • 2.25" ID 3.376" OD : 10-63

Main Specs:

• Hub Pilot: 4.75"
• Bolt Pattern: 8 on 6-1/2"
• Stud size: 5/8"
• Capacity: 4,000 lbs
• Manufacturer: Dexter Axle
• Part number: 008-399-08
• Made in USA

Note: Number 10 in Below Diagram
