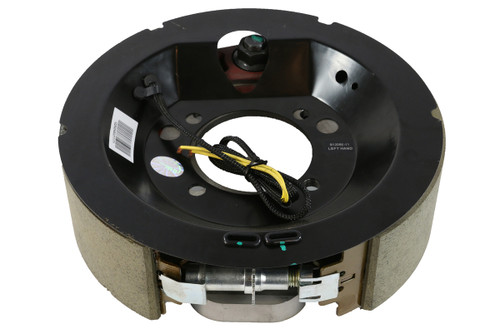

- Complete left hand (driver's side) electric brake assembly for 8,000 lb. axles.
- Works on both Dexter and Lippert brand axles.
- Simply bolts on to the axle flange with 4 bolts (not included) and hooks up the 2 electrical wires.
- Forward self-adjusting brakes – requires no manual adjustment.
- Works with most standard hub/drum assemblies including Dexter and Lippert (LCI).
- Brakes are QAI and CSA certified; pads are fully bonded (no rivets) for long life and reliability.
- E-coated backing plates and zinc plated components resist rust and corrosion.
- Rear plastic adjuster plugs are included to cover access holes.
Main Specs:
- Brake Size: 12-1/4" Diameter x 3-3/8" wide
- Main Body Construction: Cast backing plate
- Mounting Position: Left Hand (Driver's side)
- Adjust Type: Forward Self-Adjusting
- Mounting Flange Type: 4 bolt
- Manufacturer: Axle Teknology LLC.
- Part Numbers: B1208E-11
- Dexter Crossover Number: K23-432-00 or 023-432-00
- Lippert Crossover Number: 298277
- Warranty: Limited 1 Year
Axle Technology Quality:
Self-Adjusting Brakes Advantage:
Standard electric brakes require the user to manually adjust the brake shoes over time. This adjustment is needed to provide consistent and efficient braking performance; failure to adjust results in weak brakes and potential failure in emergency situations. Self-adjusting brakes automatically maintain proper alignment while driving forward, saving time and providing a consistent, safer braking experience.
QAI Testing and CSA Certification:
These brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load within a set distance and to be built to industry standards. In addition, these brakes have been tested by QAI for performance in a complete automotive setup under real-world conditions, ensuring safety and quality.
Automotive-Grade Friction Material:
Axle Technology brings the power of automotive-grade friction material to the trailer brake market, providing improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe, and the custom-molded lining provides a perfect fit while reducing the chance of cracking and crumbling. Tapered edges also protect against mechanical lockup that can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified, meaning it is environmentally safe and complies with California and Washington regulations. As a result, this material not only delivers high-performance braking that stands the test of time, but it is also environmentally friendly and safe to use in both the United States and Canada.
