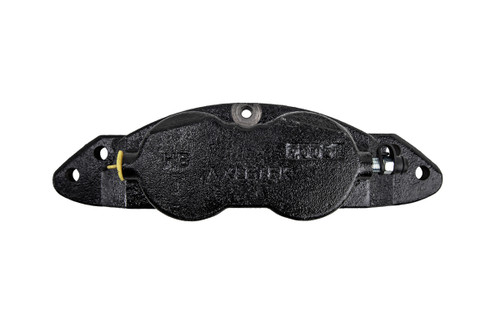

Dexter 8,000 lb axle replacement caliper kit.
This caliper fits both the left or right hand side of your trailer.

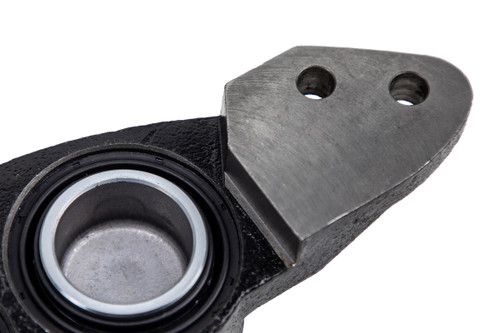

Caliper is designed with 4 pistons that push from both directions.
Made from cast iron construction with a black paint finish.
Designed to work with 16", 16.5", and 17.5" wheels.
Wrenches and paper instructions included for easier installation.
Kit includes:
• (4) Caliper mounting nuts #006-045-00

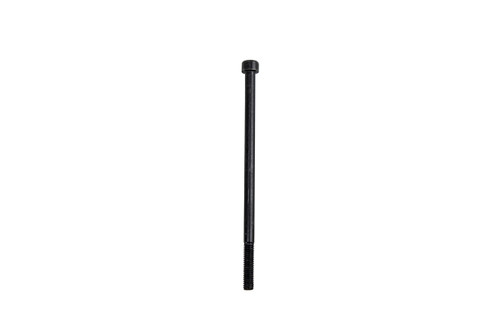

• (4) Caliper mounting bolts #007-254-00
• (1) Hex Bolt #007-469-00
• (1) Nut #006-289-00
• (1) Cotter Ring #019-019-00
• (1) Tube clamp #027-060-00
• (1) Anti-rattle spring #046-145-00
• (1) Spring Tension Clip #046-218-00
• (1) Bleeder Screw #054-092-00
• (1) Hose Adapter Fitting #054-094-00
• (1) Hydraulic cross over line for yokes without notch #071-513-00
• (1) Hydraulic cross over line for yokes with notch #071-518-00
• (1) Hex bolt #087-002-00
• (2) Cast Assembled Caliper half piece #089-003-02
• (3) Wrenches 8, 10, 13, 14, 16 and 17 MM
• (1) Allen Wrench
• (1) Paper Installation Instructions
Main Specs:
Axle size: 8,000 lbs.
Quantity: 1 wheel
Position: Left or Right Hand
Manufacturer: Axle Teknology
Part number: A71-630-00 or AK71-630-00
Dexter's Crossover Part Number: K71-630-00
Warranty: 1 Year Warranty
Position on Chart below: All marked 2
[Image: /v/vspfiles/assets/images/K71-630-00.JPG]
[Image: https://www.fayettedistribution.com/v/vspfiles/assets/images/Axle Tek decal.png]
Axle Technology Quality:
QAI Testing and CSA certification:
These brake assemblies meet and exceed the requirements for Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. In addition, these brakes have also been tested by QAI for braking performance in a complete automotive setup under real-world conditions. This provides the most realistic scenarios that the everyday driver will see and ensures the brake is built with safety and quality in mind.
Automotive-Grade Friction Material:
Axle Technology brought the power of automotive-grade friction material to the trailer brake market. This provides improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe. The lining is custom-molded on the shoe which provides a perfect fit and reduces the chance of cracking and crumbling. In addition, tapered edges protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
The friction material is SAE-N certified. SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result, this material not only provides high-performance braking that stands the test of time, but is also environmentally friendly and safe to use in both the United States and Canada.
