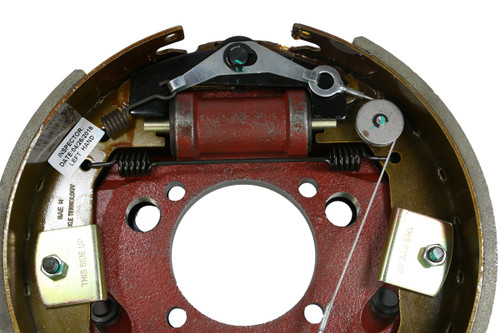

Complete left hand (driver's side) hydraulic brake assembly for 8,000 lb. axles
To install, simply bolt the brake assembly to the brake flange on the axle, connect the hydraulic fitting, and bleed brakes.
Shoes are forward self adjusting, so you will not have to manually adjust the brakes.
Includes single bleeder port for bleeding brakes
Fits 8,000 Dexter, Lippert(LCI), and Axis axles
Note: Do not use with an Electric/Hydraulic Brake Actuator pump that is set for higher than 1,000 PSI.
Main Specs:
• Brake Size: 12-1/4" Diameter x 3-3/8" wide
• Main Body Construction: Cast Backing Plate
• Mounting Position: Left Hand (Driver's side)
• Adjust type: Forward Self-Adjusting
• Servo Type: Duo
• Mounting Flange type: 4 bolt
• Manufacturer: Axle Teknology LLC.
• Part numbers: B1208H-41
• Dexter Crossover number: K23-402-00 or 023-402-00
• Lippert Crossover number:
• Warranty: Limited 1 Year
Axle Teknology decal image:
https://www.fayettedistribution.com/v/vspfiles/assets/images/Axle%20Tek%20decal.png
Axle Technology Quality:
Self-Adjusting Brakes Advantage:
• Standard hydraulic brakes require the user to manually adjust the brake shoes out over time.
• Adjustment is required to provide a consistent and efficient braking performance.
• Failure to complete this task can result in weak brakes and failure in an emergency braking situation.
• Self-adjusting brakes automatically keep the shoes properly aligned while driving forward, saving time and providing consistent, safer braking.
QAI Testing and CSA Certification:
• These brake assemblies meet and exceed Canadian Standards Association (CSA) requirements.
• CSA certification ensures the brake stops a regulated load within a set distance and is built to industry standards.
• The brakes have been QAI tested for performance in a complete automotive setup and under real-world conditions to ensure safety and quality.
Automotive-Grade Friction Material:
• Axle Teknology uses automotive-grade friction material for improved stopping power and longevity.
• The friction material is fully bonded to the surface of the shoe with a custom-molded lining for a perfect fit and reduced risk of cracking or crumbling.
• Tapered edges help protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
• The friction material is SAE-N certified, meaning it is environmentally safe and complies with California and Washington regulations while still delivering high-performance braking.
