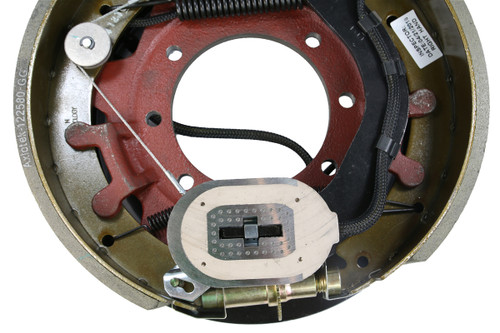

Complete right hand (passenger's side) electric brake assembly for 9,000-10,000 lb. general duty axles.
• Work on Both Dexter and Lippert Brand axles
• Simply bolts on to the axle flange with 7 Bolts (not included) and hook up the 2 electrical wires.
• These are forward Self-Adjusting brakes – requires no manual adjustment
• Works with most standard hub/drum assemblies including Dexter and Lippert (LCI)
• Brakes are QAI & CSA certified and pads are fully bonded (no rivets) for long life and reliability
• E-Coated backing plates and zinc plated components provide resistance to rust and corrosion
• Rear plastic adjuster plugs are included to cover access holes
Main Specs:
• Brake Size: 12-1/4" Diameter x 3-3/8" wide
• Mounting Position: Right Hand (Passenger's side)
• Adjust type: Forward Self-Adjusting
• Mounting Flange type: 7 bolt
• Manufacturer: Axle Teknology LLC.
• Part numbers: B1210E-12
• Dexter Crossover number: K23-449-00 or 023-449-00
• Lippert Crossover number: 181936
• Warranty: Limited 1 Year
Axle Technology Quality:
Self-Adjusting Brakes Advantage:
• Standard electric brakes require the user to manually adjust the brake shoes over time.
• Self-adjusting brakes are always properly aligned while driving forward, saving time and providing consistent, safer braking performance.
QAI Testing and CSA Certification:
• These brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA), ensuring a regulated stop distance and industry-standard construction.
• Tested by QAI under real-world automotive conditions for superior safety and quality.
Automotive-Grade Friction Material:
• Uses automotive-grade friction material for improved stopping power and longevity.
• The friction material is fully bonded to the surface of the shoe with a custom-molded lining for a perfect fit, reducing the chance of cracking and crumbling.
• Tapered edges help prevent mechanical lockup when brake shoes are excessively worn or broken.
• SAE-N certified, meaning the material is environmentally safe and complies with California and Washington regulations, ensuring high-performance braking that stands the test of time while being safe for use in the United States and Canada.
