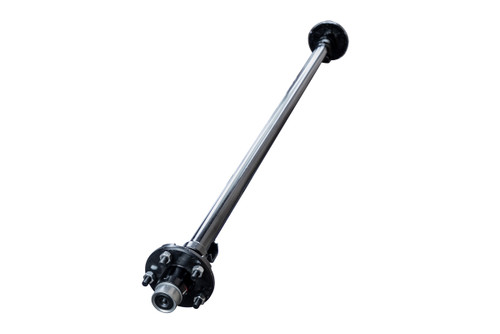

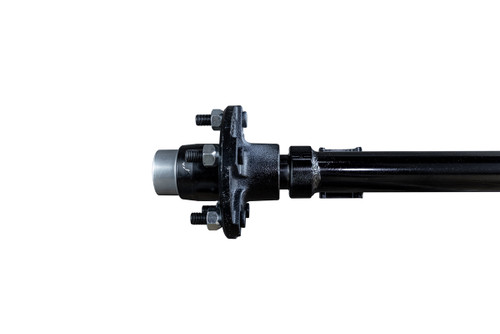

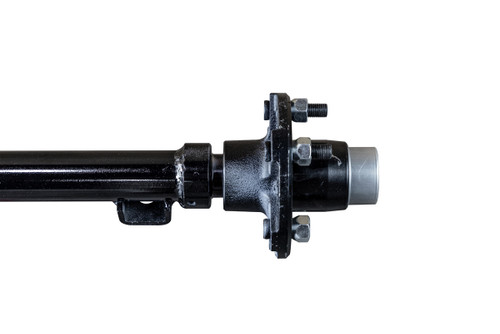

Complete Straight 2,200 lb. Replacement Trailer Axle built to your exact specifications
• Complete Axle includes:
– Axle tube
– Spindles
– Idlers
– Pre-greased Hubs
• Spindles are designed with a patented over tube design which allows for a 40% stronger weld
• Axle Beam is cambered to precision
• Lubrication: Easy lube spindles with grease Zerk
• Made in the USA
Axle Tube: 1-3/4" outside diameter – .220" medium wall tubing
Spindle Size: #BT16 with grease zerk
Inside components (Depending on Build):
– Hubs: Pre-greased 4 on 4" or 5 on 4.5" Idler with 1/2" studs
Bearings:
– Inner: L44649
– Outer: L44649
Races:
– Inner: L44610
– Outer: L44610
Grease seal: Part # 10-60 1.50" ID x 1.987" OD
Main Specs:
• Construction: Steel
• Finish: Sherwin Williams High Gloss Paint
Axle Weight rating: 2,200 lb. capacity
Spindle Type: Straight
Hub Face to Hub face: Your specification in ¼" increments (See measurement guide)
Spring Center to Spring Center: Your specification in ¼" increments (See measurement guide)
Warranty: Limited 5 Year Warranty
Made in the USA
Note: Pictures of axle may not be accurate depending on your build choice. Pictures are intended to give you a general idea.
Axle build process link: https://fayettemfg.com/our-process/
Customer Focused Products!
• 24 hr. Fulfillment Times
If you rely heavily on your broken-down trailer, we offer a 24 hour build time on our axles! If required, shipping will take longer, but picking up your axles at our Lewisburg PA facility is also an option.
* 24 Hour Build Times do not apply to weekends
• Pre-Greased Hubs / Pre-Set Brakes
Your axle will be shipped to you ready for installation. No extra prep work is required, simply bolt it to your trailer and torque the bolts.
• 5 Year Limited Warranty
Our Axles will be free from defects in material and workmanship for a period of 5 years. If you encounter an issue, a simple call to our facility will be all that is required.
• Aftermarket Interchangeability for All Components
All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacement part you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
