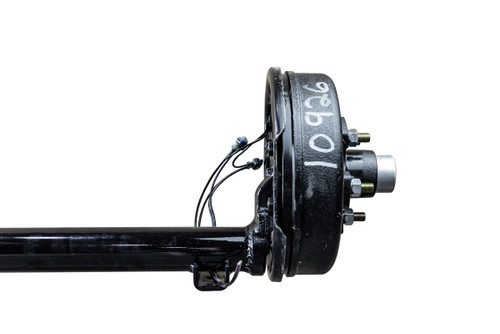

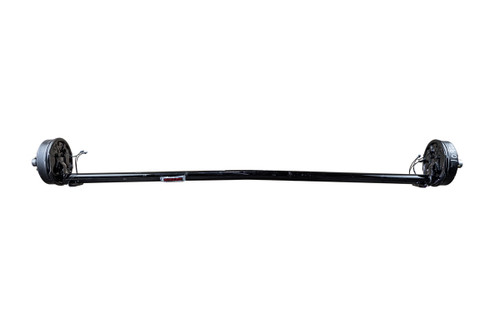

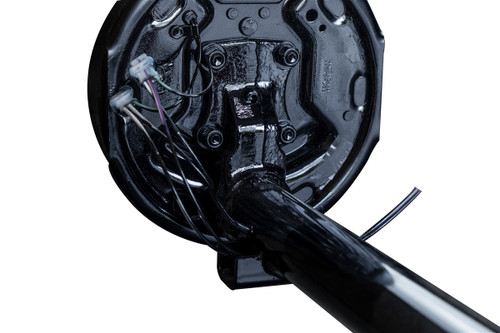

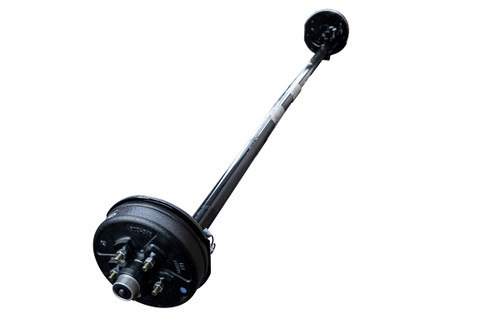

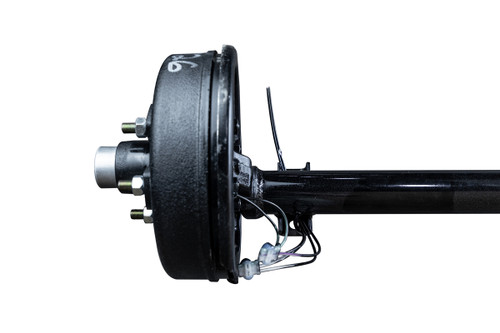

Complete 4" Drop 3,500 lb. Replacement Trailer Axle built to your exact specifications
Complete Axle includes:
- Axle tube
- Spindles
- Brakes or idlers
- Pregreased drums and hubs
Spindles Included Integrated Brake Flange: 4 Bolt for 10" x 2-1/4" brakes
Spindles are designed with a patented over tube design which allows for a 40% stronger weld
Axle Beam is cambered to precision
Lubrication: Easy lube spindles with grease Zerk
Made in the USA
Axle Tube: 2-3/8" outside diameter -.220" medium wall tubing
Spindle Size: #84 with grease zerk
Inside components (Depending on Build):
- Hubs: Pre-greased Idler or Drum with 1/2" studs
Possible Brakes Options:
- (1) LH and RH 10" x 2-1/4" Self-Adjusting Electric Brakes
- (1) LH and RH 10" x 2-1/4" Free-Backing Hydraulic Drum Brakes
- (1) LH and RH 10" Dacroment Coded Disc Brakes Rotor with Calipers
Bearings:
- Inner: L68149
- Outer: L44649
Races:
- Inner: L68111
- Outer: L44610
Grease seal: Part # 10-19 1.719" ID x 2.565" OD
Main Specs:
- Construction: Steel
- Finish: Sherwin Williams High Gloss Paint
Manufacturer: Fayette Manufacturing LLC. Website: https://fayettemfg.com/
Axle Weight rating: 3,500 lb. capacity
Spindle Type: 4" Drop
Hub Face to Hub face: Your specification in 1/4" increments (See measurement guide)
Spring Center to Spring Center: Your Specification in 1/4" increments (See measurement guide)
Warranty: Limited 5 Year Warranty
Made in the USA
Note: Pictures are designed to give you a general idea. They may not be an exact representation depending on what you build.
Axle build process link: https://fayettemfg.com/our-process/
Customer Focused Products!
24 hr. Fulfillment Times
If you rely heavily on your broken-down trailer, we offer a 24 hour build time on our axles! If required, shipping will take longer, but picking up your axles at our Lewisburg PA facility is also an option. * 24 Hour Build Times do not apply to weekends
Pre-Greased Hubs / Pre-Set Brakes
Your axle will be shipped to you ready for installation. No extra prep work is required, simply bolt it to your trailer and torque the bolts.
5 Year Limited Warranty
Our Axles will be free from defects in material and workmanship for a period of 5 years. If you would encounter an issue, a simple call to our facility will be all that is required.
Aftermarket Interchangeability for
All Components
All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacement part you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
