Complete 4" Drop 6,000 or 7,000 lb. Replacement Trailer Axle built to your exact specifications
Complete Axle includes:
- Axle tube
- Spindles
- Brakes or idlers
- Pregreased drums and hubs
Spindles Included Integrated Brake Flange: 5 Bolt for 12" x 2" brakes
Spindles are designed with a patented over tube design which allows for a 40% stronger weld
Axle Beam is cambered to precision
Lubrication: Easy lube spindles with grease Zerk
Made in the USA

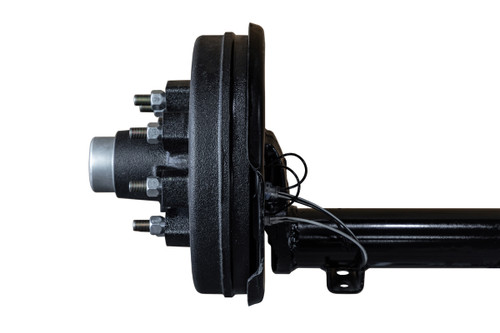

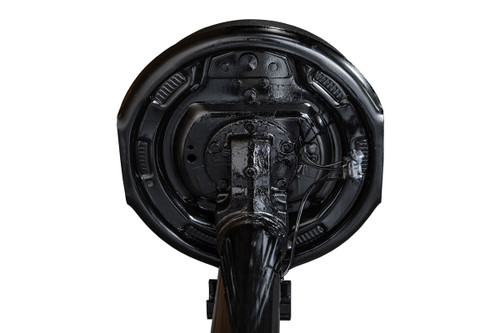

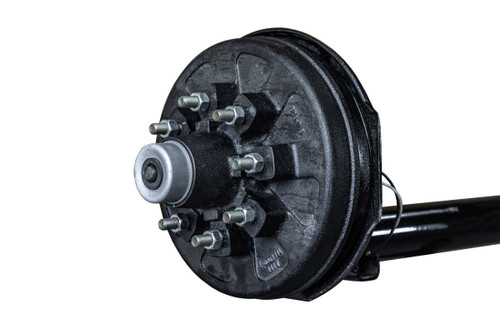

Pictures are a representation only axle will change based on how you build it.
Axle Tube: 3" outside diameter -.250" wall tubing
Spindle Size: #42 with grease zerk
Inside components (Depending on Build):
- Hubs: Pre-greased Idler or Drum with 1/2" or 9/16" studs
Possible Brakes Options:
- (1) LH and RH 12" x 2" Self-Adjusting Electric Brakes
- (1) LH and RH 12" x 2" Free-Backing Hydraulic Drum Brakes
- (1) LH and RH 12" or 13" Dacroment Disc Brakes Rotors with Calipers
Bearings:
- Inner: 25580
- Outer: 6K: 15123; 7K: 14125A
Races:
- Inner: 25520
- Outer: 6K: 15245; 7K: 14276
Grease seal: Part # 10-36, 2.25" ID x 3.371" OD
Main Specs:
Construction: Steel
Finish: Sherwin Williams High Gloss Paint
Axle Weight Rating: 6,000 or 7,000 lb. capacity
Spindle Type: 4" Drop Spindle
Hub Face to Hub Face: Your specification in 1/4" increments (See measurement guide)
Spring Center to Spring Center: Your specification in 1/4" increments (See measurement guide)
Warranty: Limited 5 Year Warranty
Made in the USA
Axle build process link:
https://fayettemfg.com/our-process/
