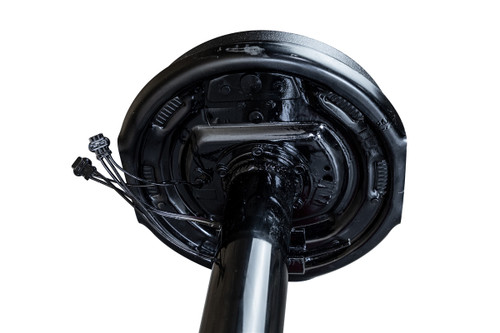

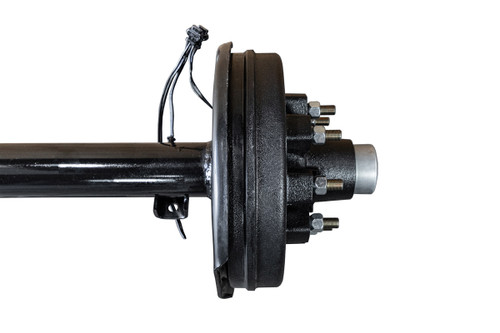

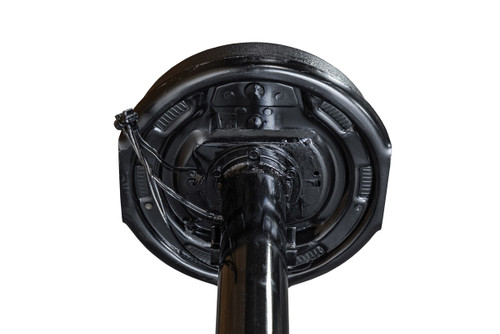

Complete Straight 6,000 or 7,000 lb. Replacement Trailer Axle built to your exact specifications
- Complete Axle includes:
- Axle tube
- Spindles
- Brakes or idlers
- Pregreased drums and hubs
- Spindles Included Integrated Brake Flange: 5 Bolt for 12" x 2" brakes
- Spindles are designed with a patented over tube design which allows for a 40% stronger weld
- Axle Beam is cambered to precision
- Lubrication: Easy lube spindles with grease Zerk
- Made in the USA
Axle Tube: 3" outside diameter -.250" wall tubing
Spindle Size: #42 with grease zerk
Inside components (Depending on Build):
- Hubs: Pre-greased Idler or Drum with 1/2" or 9/16" studs
Possible Brakes Options:
- (1) LH and RH 12" x 2" Self-Adjusting Electric Brakes
- (1) LH and RH 12" x 2" Free-Backing Hydraulic Drum Brakes
- (1) LH and RH 12" or 13" Dacroment Disc Brakes Rotors with Calipers
Bearings:
- Inner: 25580
- Outer: 6K: 15123; 7K: 14125A
Races:
- Inner: 25520
- Outer: 6K: 15245; 7K: 14276
Grease seal: Part # 10-36, 2.25" ID x 3.371" OD
Main Specs:
- Construction: Steel
- Finish: Sherwin Williams High Gloss Paint
- Axle Weight rating: 6,000 or 7,000 lb. capacity
- Spindle Type: Straight
- Hub Face to Hub Face: Your specification in 1/4" increments (See measurement guide)
- Spring Center to Spring Center: Your specification in 1/4" increments (See measurement guide)
- Warranty: Limited 5 Year Warranty
- Made in the USA
Axle build process link: https://fayettemfg.com/our-process/
Customer Focused Products!
24 hr. Fulfillment Times
If you rely heavily on your broken-down trailer, we offer a 24 hour build time on our axles! If required, shipping will take longer, but picking up your axles at our Lewisburg PA facility is also an option.
* 24 Hour Build Times do not apply to weekends
Pre-Greased Hubs / Pre-Set Brakes
Your axle will be shipped to you ready for installation. No extra prep work is required; simply bolt it to your trailer and torque the bolts.
5 Year Limited Warranty
Our axles will be free from defects in material and workmanship for a period of 5 years. If you encounter an issue, a simple call to our facility will be all that is required.
Aftermarket Interchangeability for All Components
All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacement parts you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
