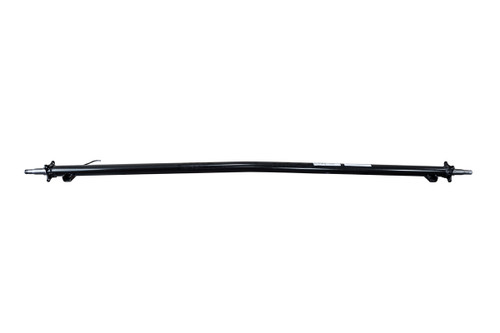

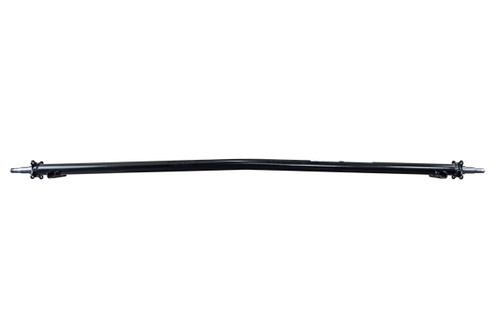

Built to Order Fayette MFG. Trailer 3,500 lb. Axle Beam Only - Straight

Complete straight 3,500 lb. replacement axle beam built to your exact specifications

Beam includes: Axle tube, brake flanges, Axle Seats, and axle spindles.

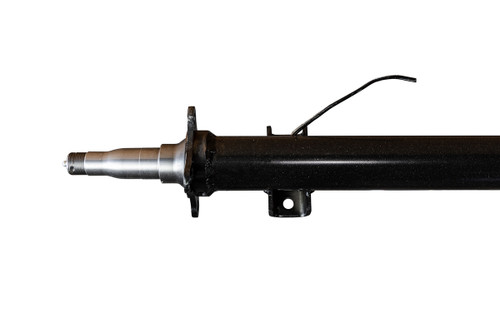

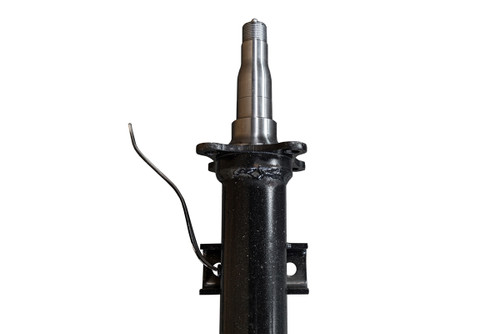

Spindles Included Integrated Brake Flange: 4 Bolt for 10" x 2-1/4" brakes.
Spindles are designed with a patented over tube design which allows for a 40% stronger weld.
Axle Beam is cambered to precision.
Lubrication: Easy lube spindles with grease zerk.
Made in the USA.
Note: Pictures are examples only

Axle Tube: 2-3/8" outside diameter -.220" medium wall tubing.

Spindle Size: #84 with grease zerk.

Inside Components (Spindle not included):   

Bearings:
Inner: L68149
Outer: L44649

Races:
Inner: L68111
Outer: L44610

Grease seal:
Part #10-19 1.719" ID x 2.565" OD (NOT Included)

Main Specs

• Construction: Steel
• Finish: Sherwin Williams High Gloss Paint
• Axle Weight Rating: 3,500 lb. capacity
• Spindle Type: Straight
• Hub Face to Hub face: Your specification in 1/4" increments
  (See measurement guide)
• Spring Center to Spring Center: Your specification in 1/4" increments
  (See measurement guide)
• Made in the USA

Axle build process: https://fayettemfg.com/our-process/
