DeeMaxx 3.5K Hydraulic Disc Brake Kit (1 axle) -MAXX Dacromet Coating
Fits right and left hand side of your trailer.

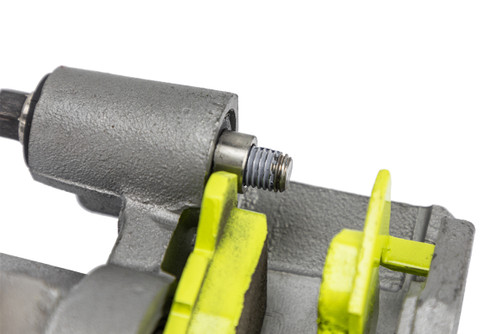

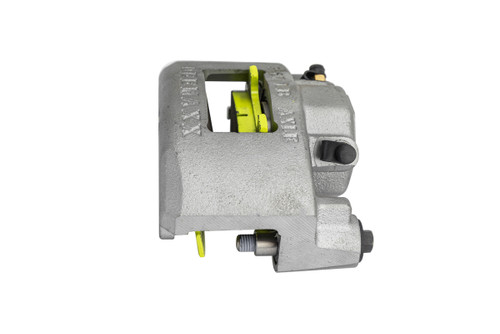

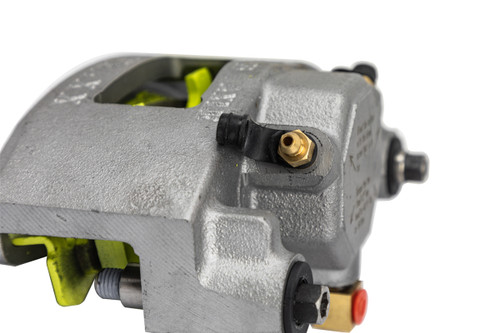

Caliper is complete with pads and new retaining bolts
Heavy duty cast construction with superior MAXX coating for rust prevention
- Dacromet coating has a salt spray rating of over 1,000 hours

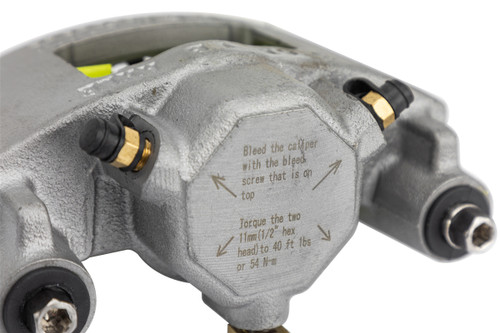

Calipers includes Lasor etched bolt torque instructions and designed PSI rating up 1,600 lbs. PSI
- Stainless steel piston provides superior braking

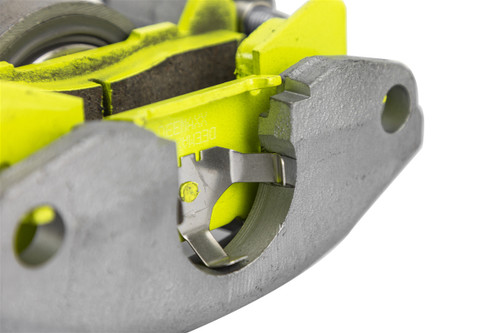

- Included ceramic pads are superior to organic or semi-metallic pads

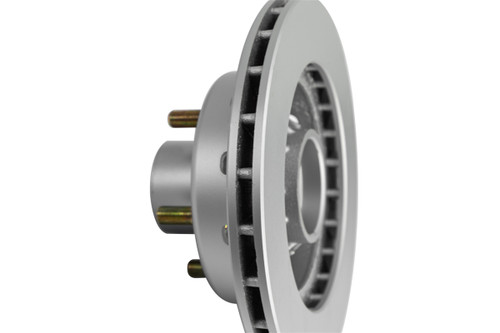

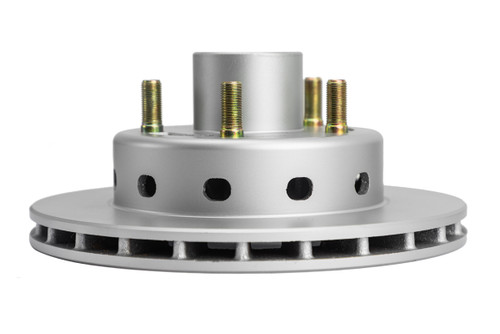

10" One piece hub and rotor reduces a chance of uneven rotor wear
- Vented design helps dissipate heat faster by allowing air to flow around the rotor
- High-quality cast construction is designed for long lasting use.
- Hub/rotor includes races and pressed in 1/2" studs
Works on Lippert or Dexter 3,500 lb. axles 5 on 4-1/2"
Assembly Includes:
(2) #Calp-3-6K-Maxx 3,500 lb. Loaded Caliper w/ pads and bolts
(2) #RTR/Hub-102-Maxx 10" Integrated Rotor w/ 5 on 4-1/2" spacing
(2) #Dbb-3.5KI-Maxx Caliper Mounting Bracket
Bearings: (NOT included)
Inner : L68149
Outer : L44649
Races (Included)
Inner : L68111
Outer : L44610
Grease Seal (not Included) 1.719" ID 2.565" OD
#10-19 or 010-019-00
Main Specs:
Axle Capacity : 3,500 Lbs.
Wheel Pattern : 5 on 4-1/2"
Wheel Stud Size : 1/2"
Rotor Size: 10-3/16"
Caliper Piston Diameter : 2-1/4"
Brake Caliper Flange : 4 Bolt
Main Construction : Cast construction
Finish: MAXX Dacromet coating
Manufacturer: Deemaxx
Deemaxx Part Number: DBI-3.5K-MAXX
Warranty : 3 Year
