Deluxe Hydraulic Line Kit for 10-12K Hydraulic Disc Trailer Brakes

Blue Dot's Hydraulic Line Kit for two disc brake axles 10,000-16,000 lbs
Designed for Hydraulic Disc applications
Works on both leaf spring or torsion applications
Comes complete with hydraulic brake lines, hosed, fittings and mounting hardware
Standard kit uses double wall brazen low carbon steel tubing w/ Galfan coating for corrosion resistance
Inverted flare tubing nuts conform to SAE J512 and flares are fabricated per SAE K533B
Works on Dexter 10,000 - 12,000 lbs. hydraulic disc brake axles without the need of a brass reducer
Kit Includes:

• (3) 3/16" Brass Service Tees
• (1) 3/16" Brass Hydraulic Union

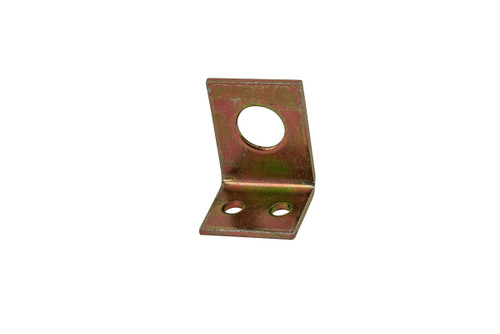

• (4) Zinc Hose Brackets
• (4) Zinc Hose Clips

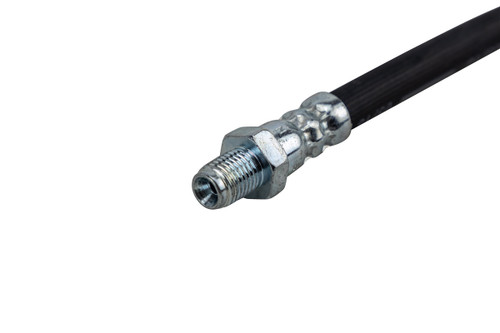

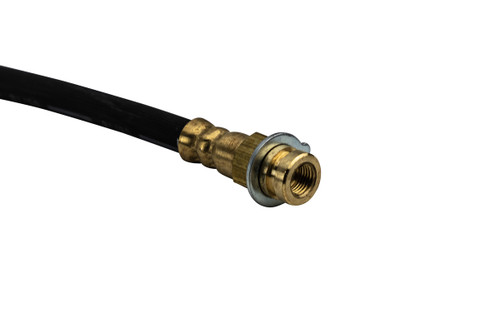

• (4) 18" Long Flex Hoses w/ 7/16" end
• (2) Line Tie Straps

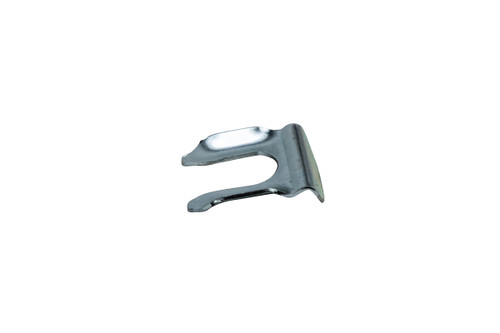

• (6) Line Retaining Clips
• (6) Line Retaining Clip Screws
• (2) 3/16" x 180" Steel Brake Lines
• (2) 3/16" x 51" Steel Brake Lines
• (1) 3/16" x 72" Steel Brake Line

Main Specs:
Manufacturer: Blue Dot Inc.
Part number: 9579-4
