This kit is designed for and fits a 10,000 lb and/or 12,000 lb rated AL-KO trailer axles. Since Dexter Axles purchased AL-KO Axles, AL-KO parts were still being manufactured; however, since then, many AL-KO parts have been discontinued. AL-KO 10&12K hubs are no longer available, along with other axle components.
This kit includes everything you need to replace the hubs & brakes on your AL-KO 10,000 lb & 12,000 lb trailer axle. The only part not included in the kit is the mounting hardware for the caliper mounts.
These components are manufactured to the highest quality and workmanship. Caliper pistons are nickel chrome plated. Calipers are E-coated. Rotors feature automotive finish.
Click here for a helpful article providing information on AL-KO parts & alternatives.
General Specs:
Manufacturer: Kodiak Brake Components
Finish: E-Coat
Rotor Size: 11.35"
Brake Flange: 5
Spindle: #120
8 on 6.5" Lug Pattern
Fits Wheel Size: 16" or larger
Lubrication: Oil or Grease
Fits: AL-KO (Alko) Axles
Old Part Number: 2/RCMHS-11-12A-HD
New Part Number: 2/H-11-12A-HD-REER
Kit Includes:
- (2) 10,000 lb & 12,000 lb hubs with or 5/8" studs
- (2) 11.35" Rotors with mounting bolts (pre-mounted to hubs)
- (2) DBC-2250-E E-coated calipers w/ nickel chrome plated pistons
- (4) Ceramic brake pads w/ clips

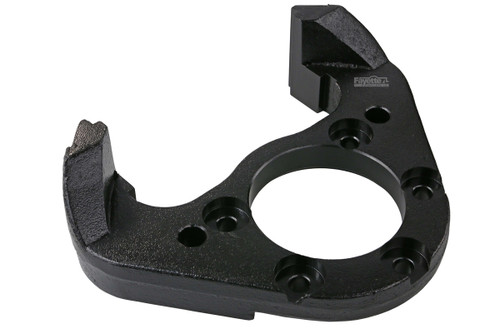

- (2) AL-KO caliper mounting brackets
- (4) Caliper retainers with bolts
- (2) Plastic screw in oil caps with rubber O-rings and plugs
Note: Kit does NOT include bearings, lugnuts, oil, or grease seals
Product Documents:
Brake Section View
Exploded View
